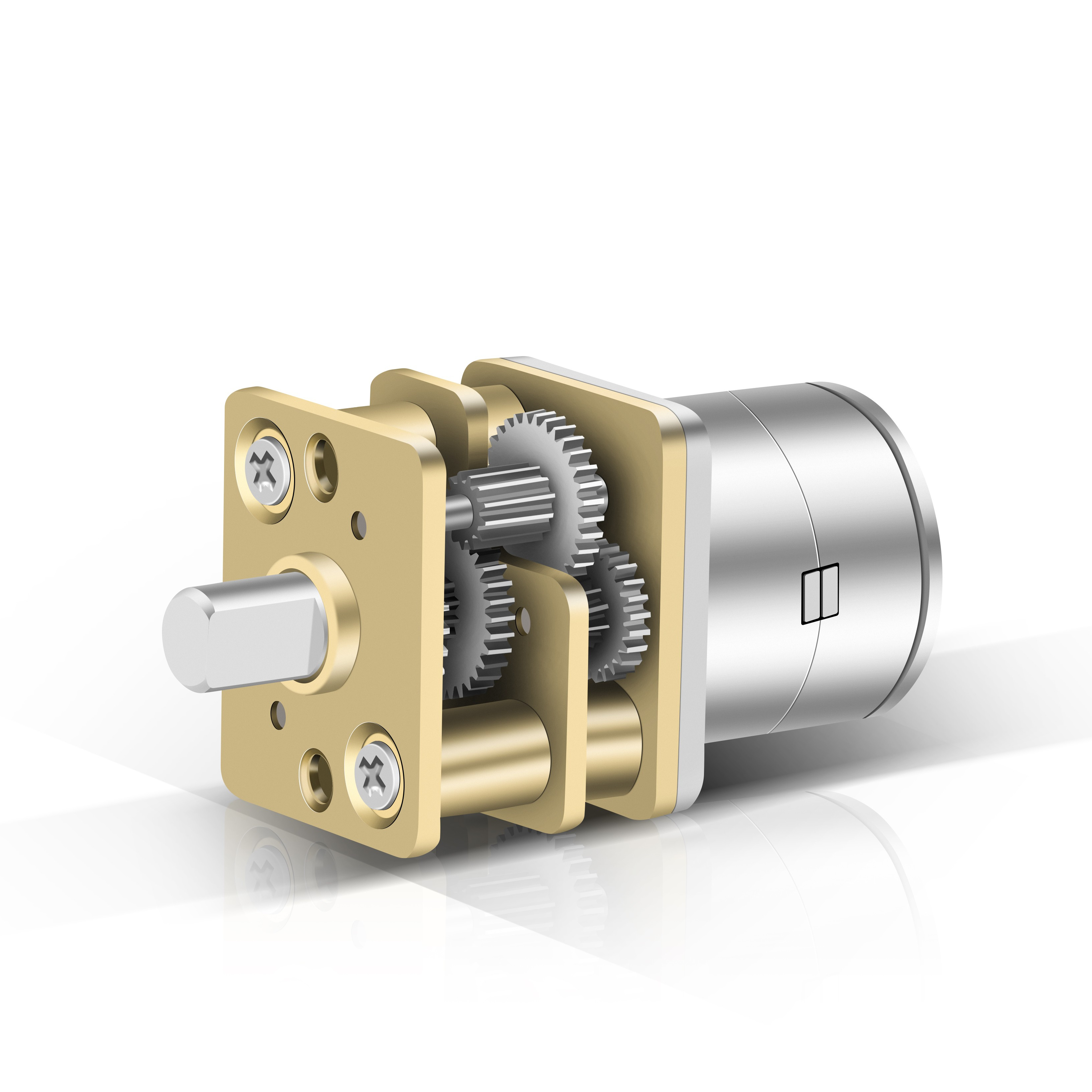

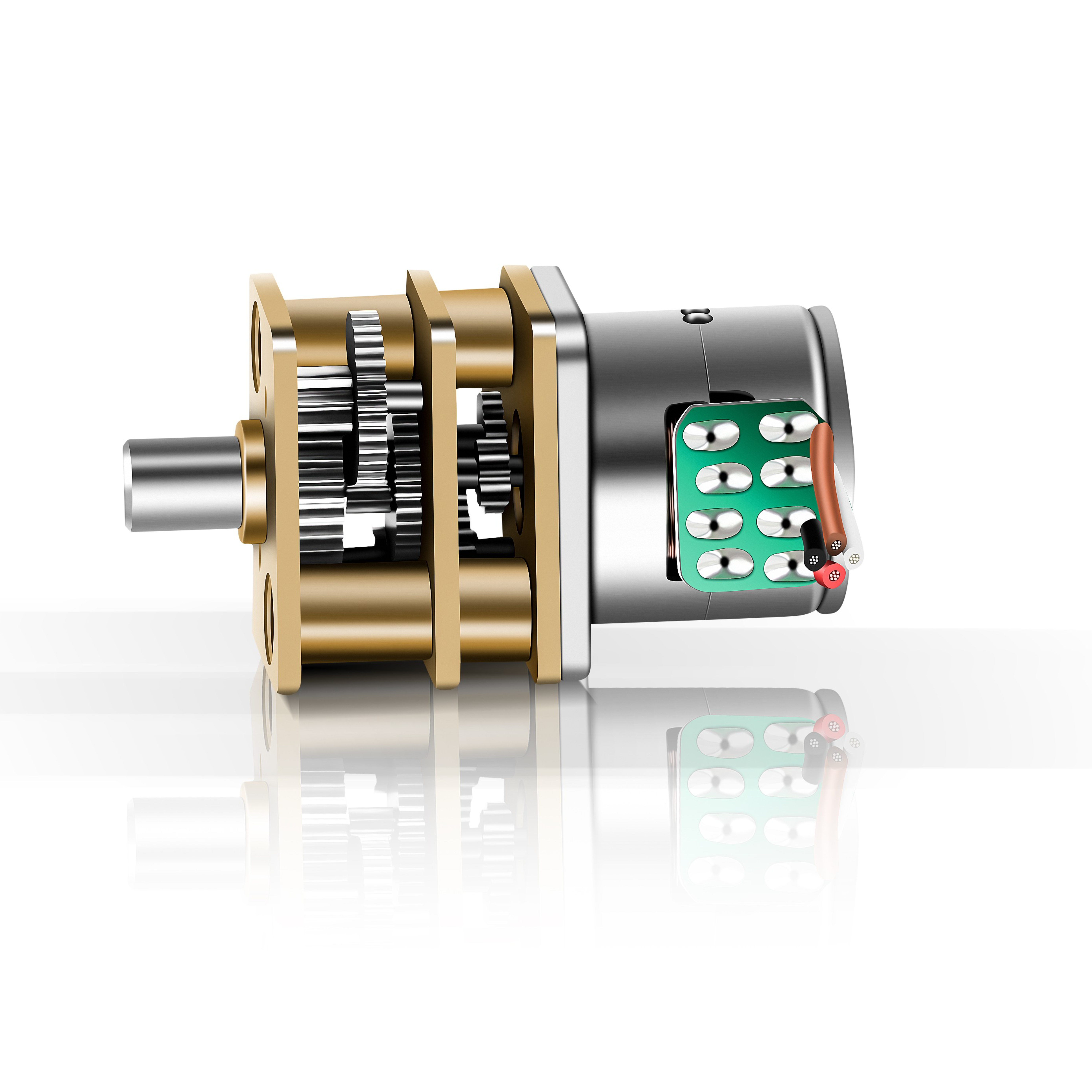

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Product Description
Product Description

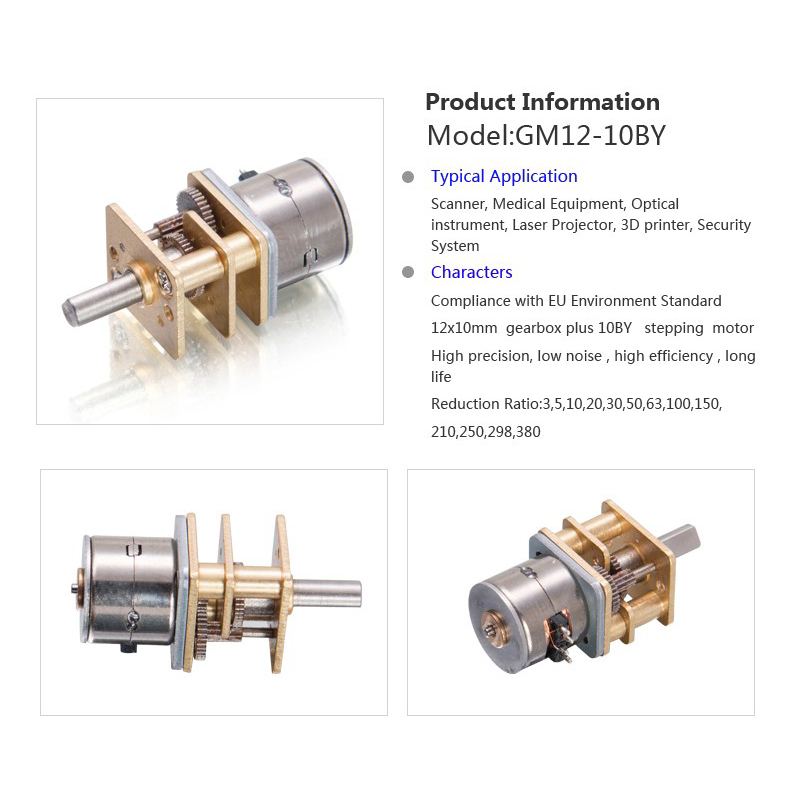

Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment
Motor Customized Specification

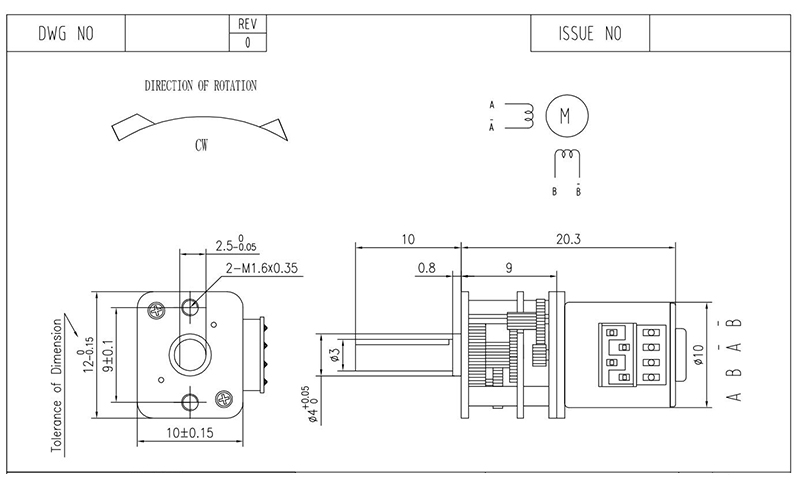

Reference Drawing: GM12-10BY
Reference Datasheet
Gearbox Technical Data
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |
| Gearbox Length "L" (mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
| Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment | |||||
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load State | Rated State | Stall State | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m / Kgf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.095 / 0.95 | ≤ 1700 | 0.42 / 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 0.32 / 3.2 | ≤ 3900 | 1.25 / 12.5 |

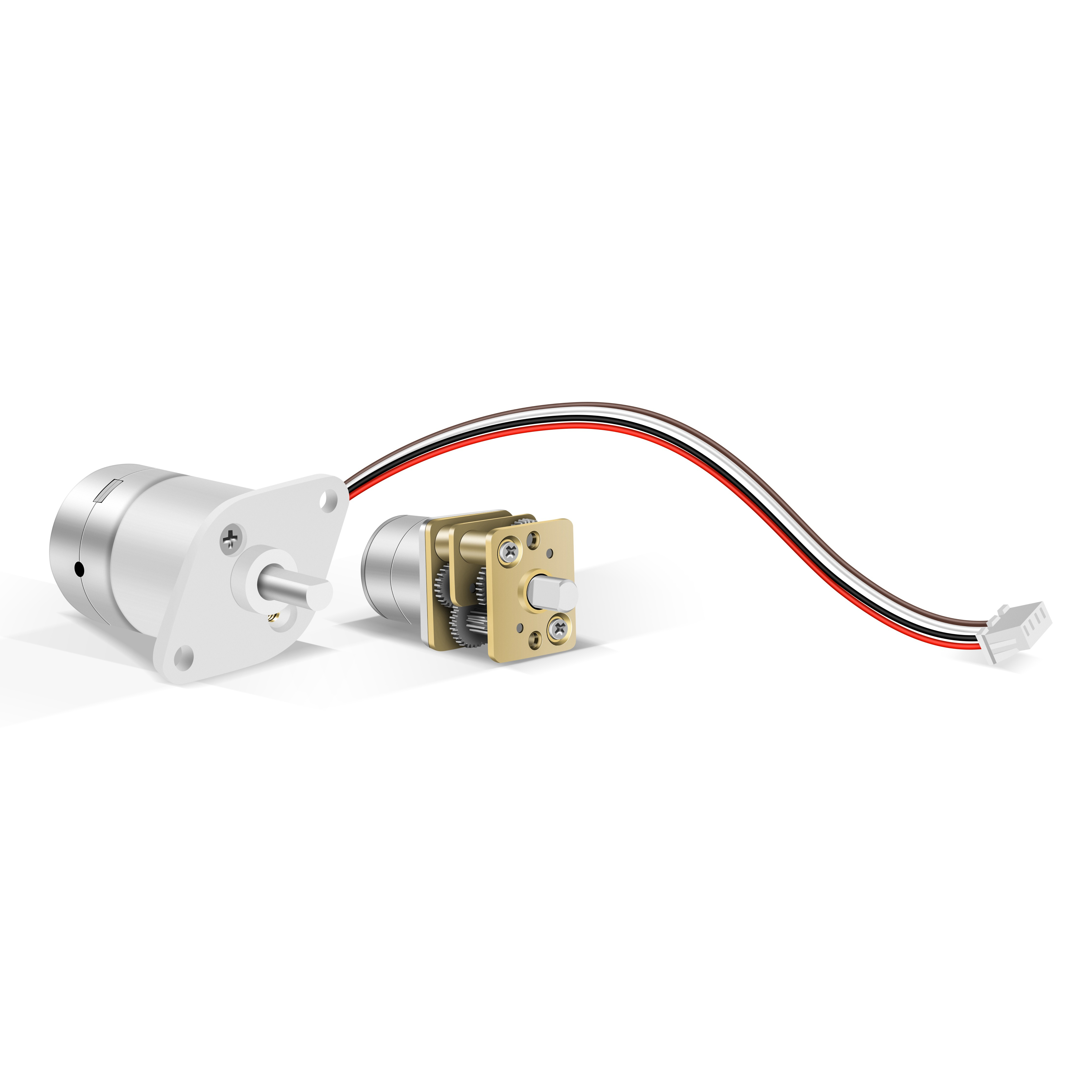

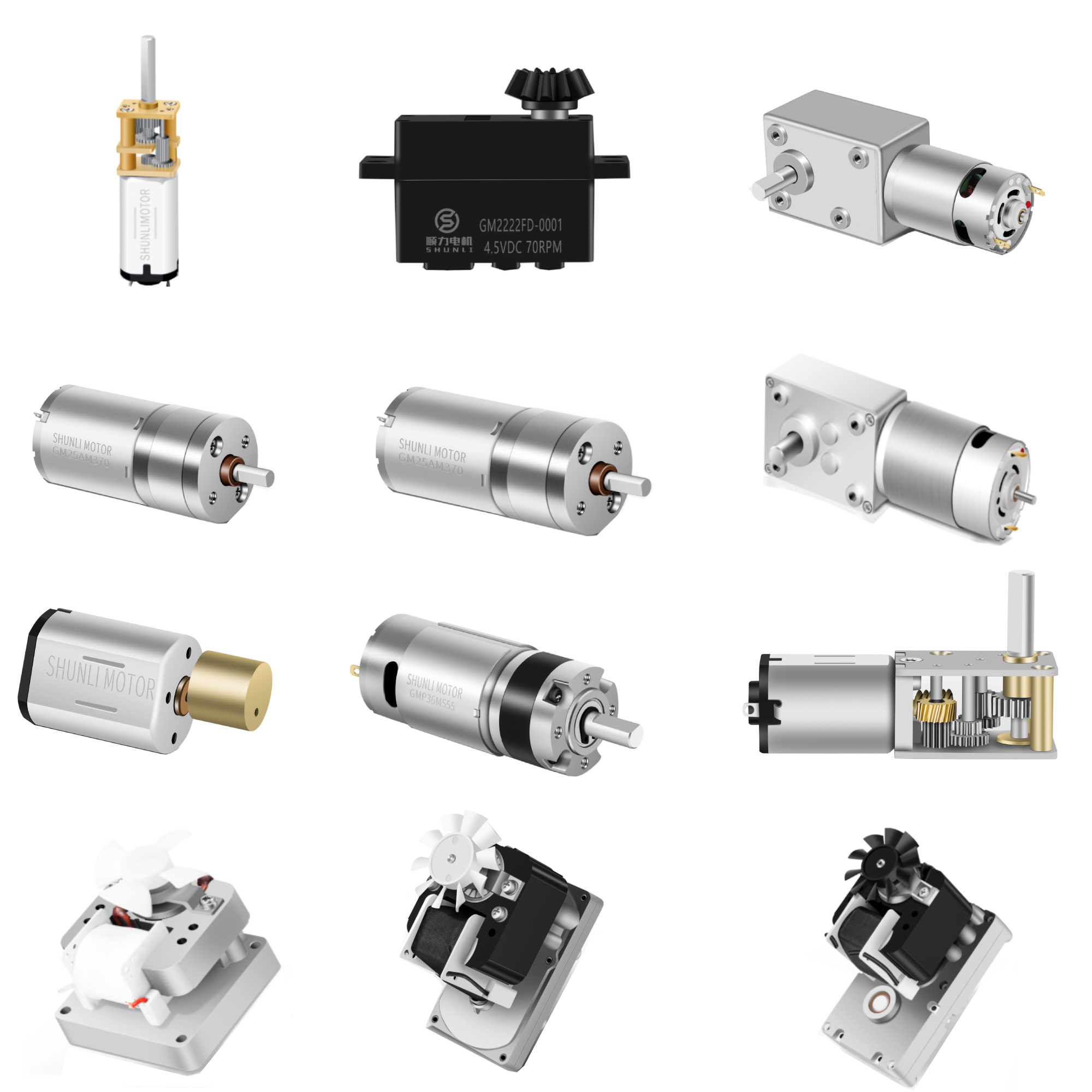

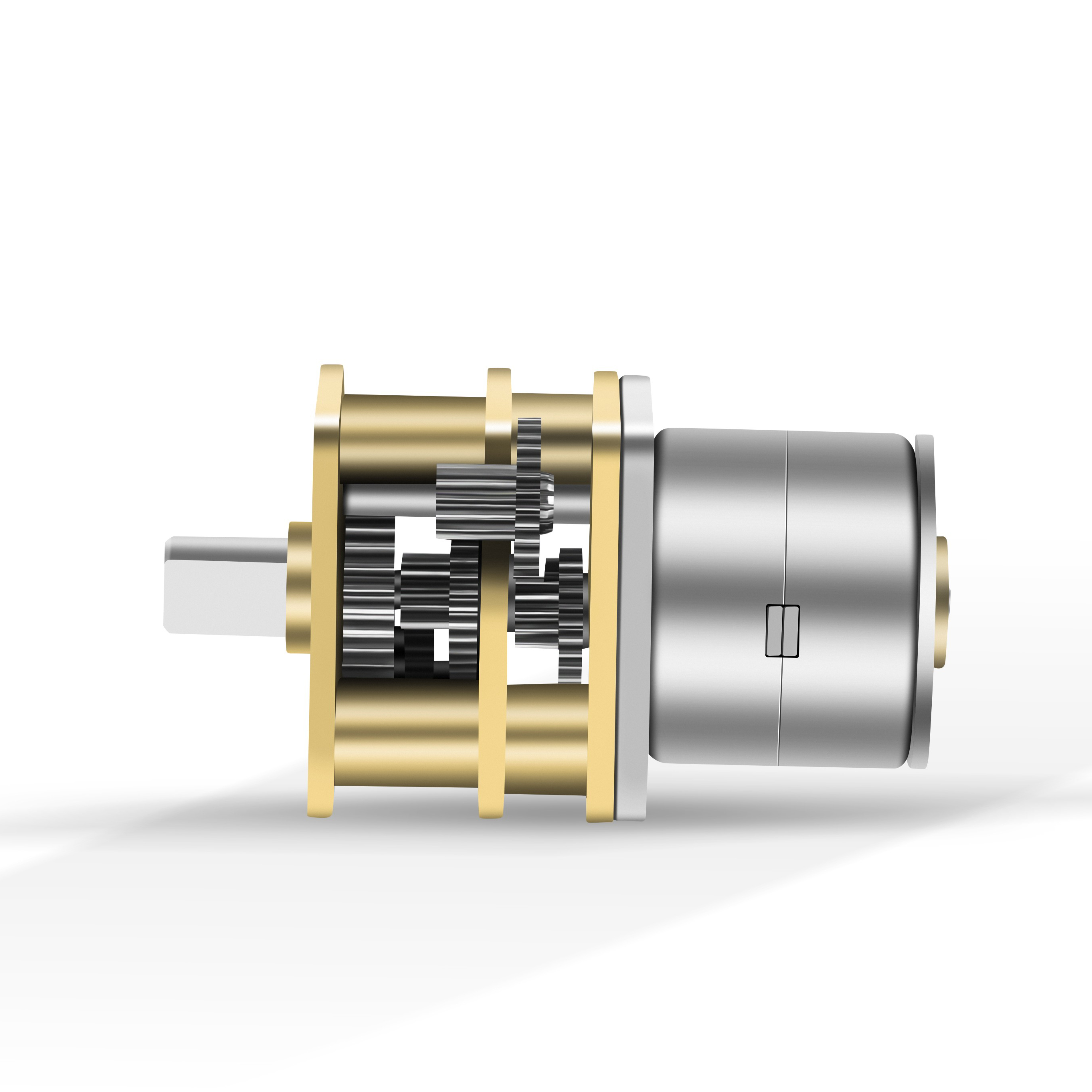

Product Showcase
Certifications
Customer Evaluation
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
What is the payment term for new customers?
We can draw up online trade assurance orders for our new customers, which can be paid online with Credit Card, Visa, etc. Customers can also pay with PayPal or T/T.
I cannot find a suitable motor on your website, can you customize one for me?
Yes, we can customize a suitable motor solution based entirely on our customer's specific requirements.
Do you have certifications for your micro motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. If you have specific certification requirements for your local market, we can apply for them for you.
How do you manage your Quality Control process?
We have dedicated testing personnel on every production line process. After finishing each motor, we conduct testing using advanced inspection equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
Can you provide technical drawings and data for evaluation?
Yes, we provide detailed technical drawings, gearbox datasheet options, and motor parameters to assist with product integration and performance verification.
