Shunli Custom Small Dc Motor Brush Low Rpm 2.4v 3.7v 5v Dc Electric Mini Vibrator Motor Adult Toy
Product Description

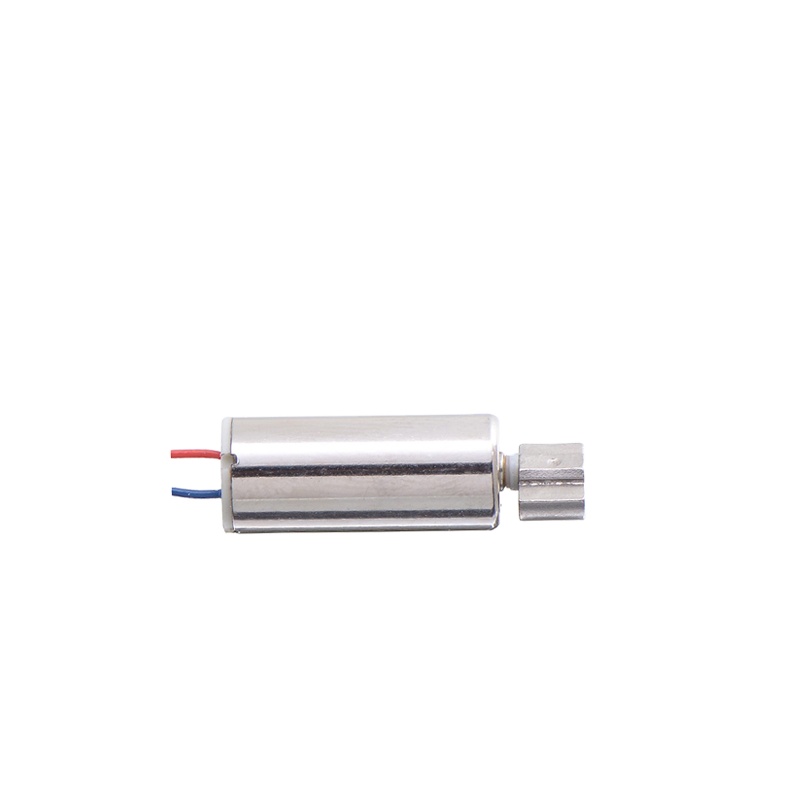

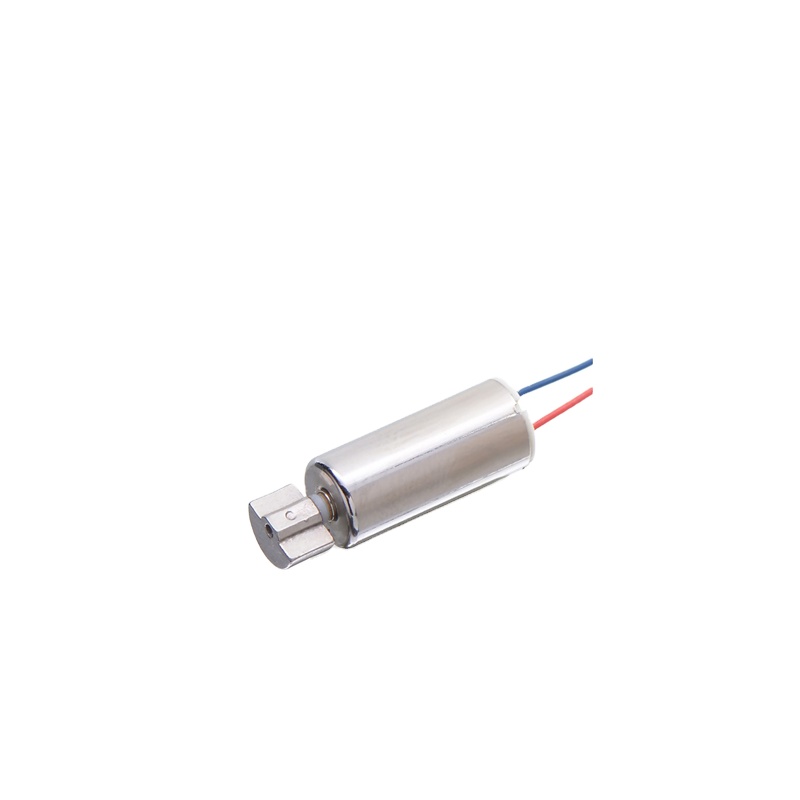

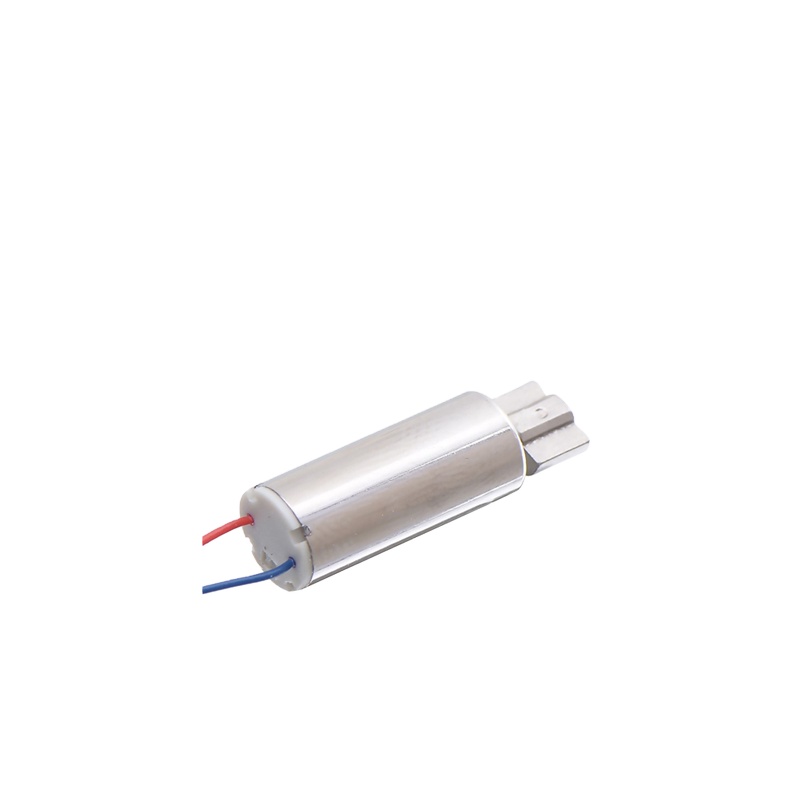

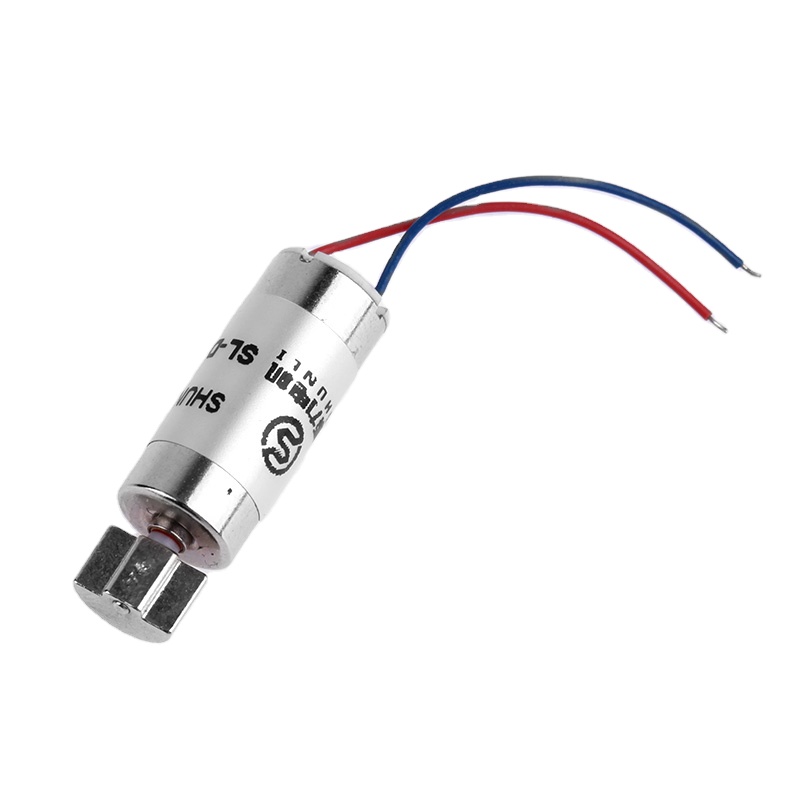

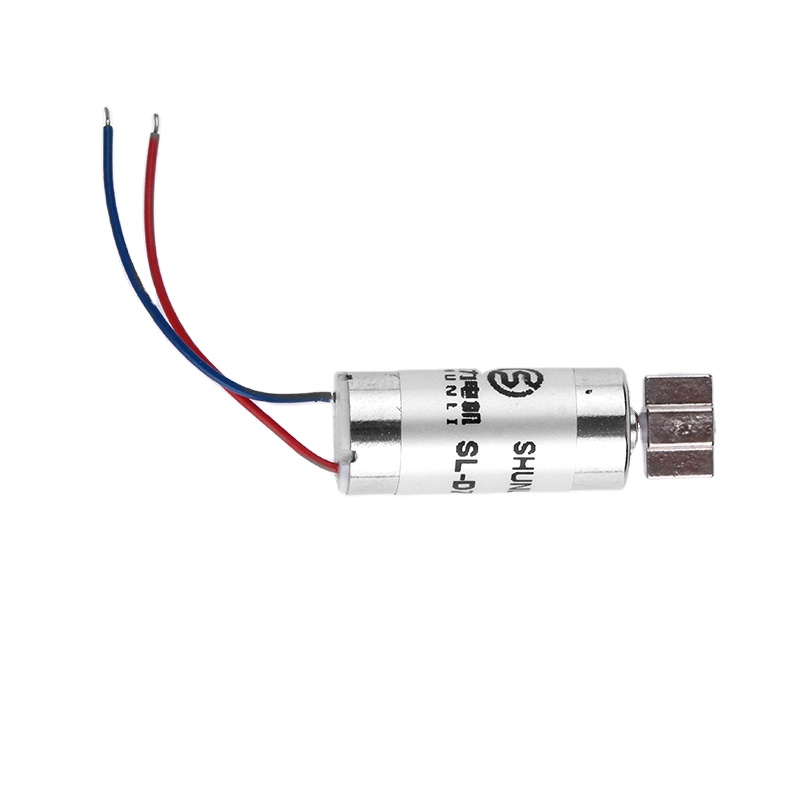

Custom small dc motor brush Low rpm 2.4v 3.7v 5v dc electric mini vibrator motor adult toy
Promotion
Technical Specifications
| MODEL | RATED | NO LOAD | RATED | STALL | ||
|---|---|---|---|---|---|---|
| VOLTAGE | SPEED | CURRENT | SPEED | CURRENT | CURRENT | |
| (V) | (r/min) | (mA) | (r/min) | (mA) | (mA) | |
| 0724 | 1.5 | 19900 | 45 | 17600 | 108 | 480 |
| 0724 | 5 | 20000 | 33 | 18500 | 65 | 400 |
| 0724 | 3 | 25300 | 28 | 21300 | 89 | 370 |
Product Details
Frequently Asked Questions
Q1: What voltage options are available for this custom mini vibrator motor?
A1: This small DC brush motor is compatible with various low voltage inputs including 1.5V, 2.4V, 3V, 3.7V, and 5V DC, depending on your custom configuration needs.
Q2: What is the typical model number and speed rating under 3V?
A2: The parameters correspond to model series 0724. Under a rated voltage of 3V, the motor features a no-load speed of 25,300 r/min and a rated speed of 21,300 r/min.
Q3: How much current does the 0724 motor draw under rated conditions?
A3: The rated current draw is 108 mA for 1.5V, 89 mA for 3V, and 65 mA for the 5V version, ensuring high efficiency for miniature devices.
Q4: What is the stall current for the 5V and 1.5V options?
A4: The stall current is rated at 400 mA for the 5V motor option, and 480 mA for the 1.5V motor option.
Q5: Is this motor suitable for compact electronic products?
A5: Yes, with its compact design, custom low RPM configurations, and low current requirements, it is widely used in adult toys and other mini electric vibration applications.
