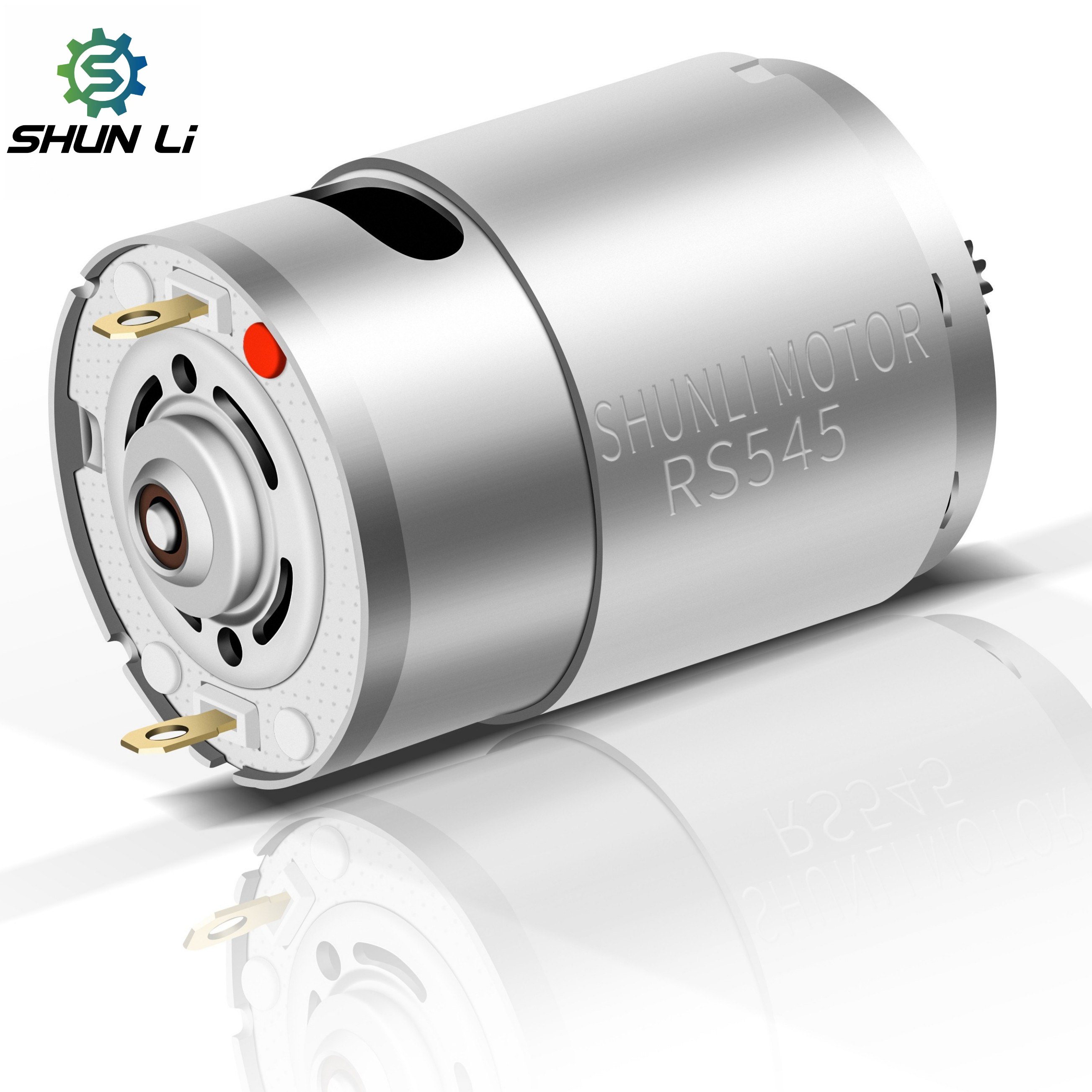

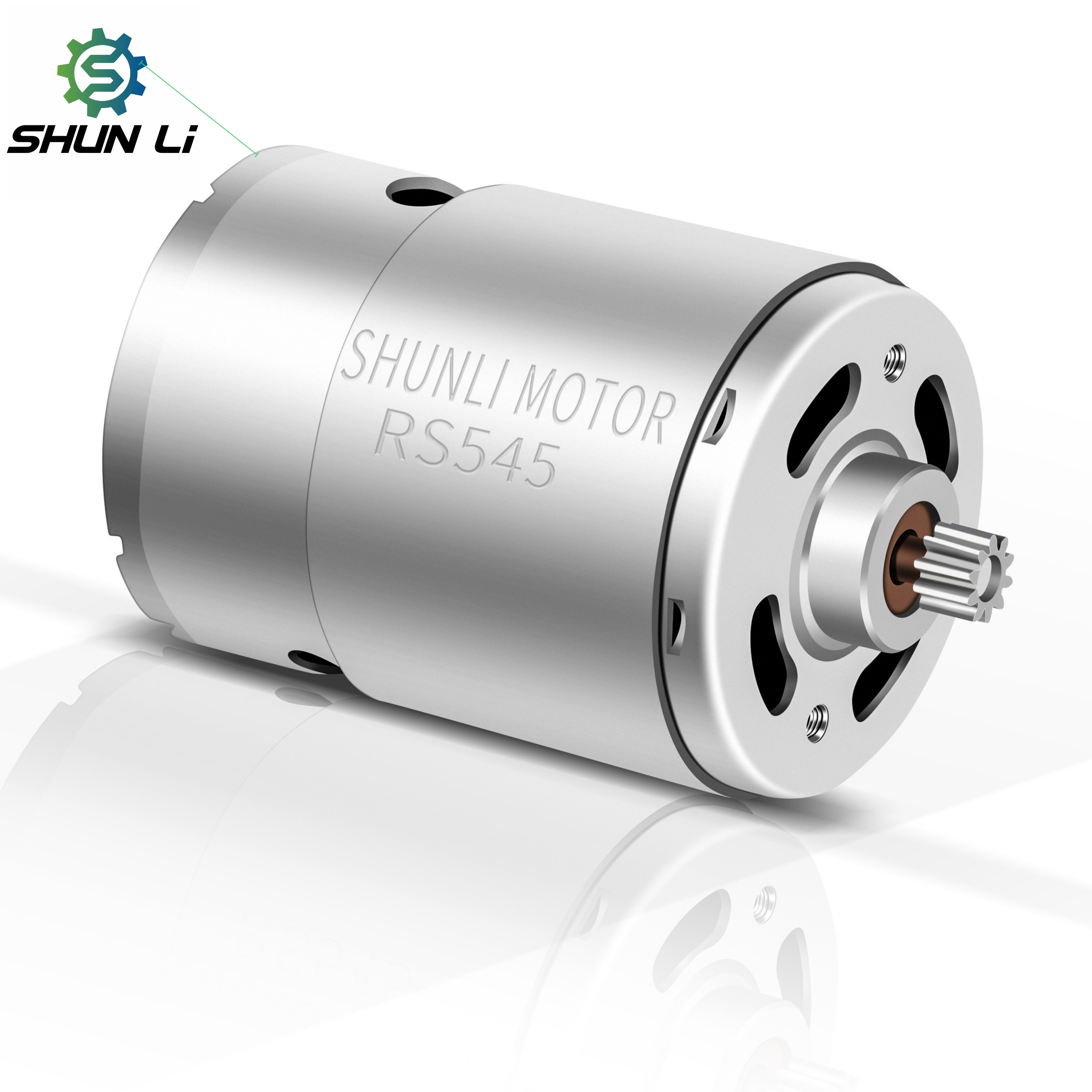

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys
Product Description
Product Description
SRS-555 12v 24v micro dc motor for water pump
Motor Customized Specification Available

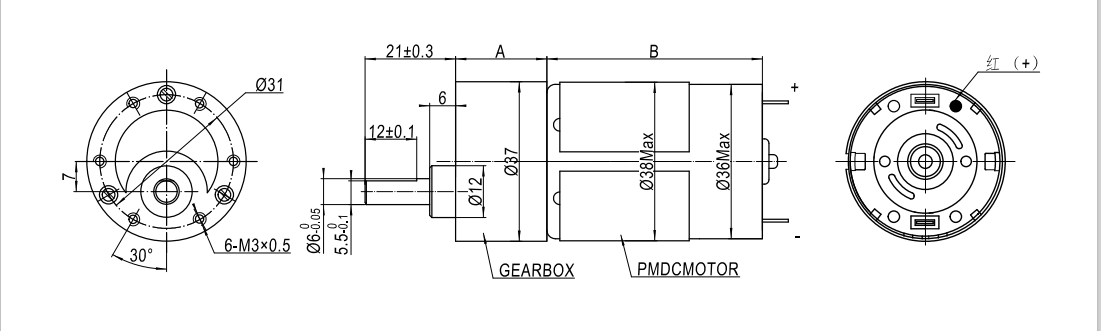

Reference Drawing
RS - 545 A
RS - 555 A
RS - 575 A
The length of shaft can be customized
Reference Datasheet
| PMDC MOTOR Technical Date | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |

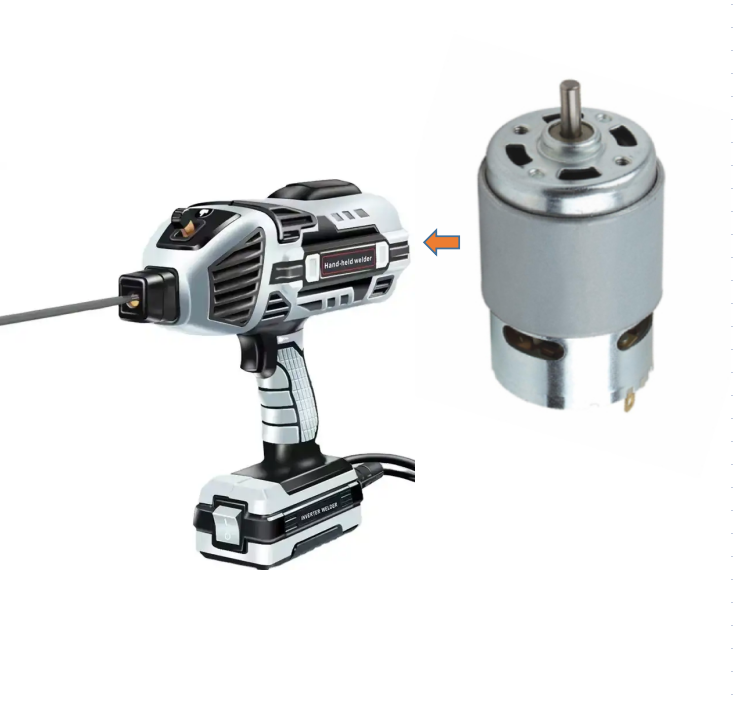

Application
Certifications
FAQ
Q1Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q2What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q3I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q4Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q5How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
