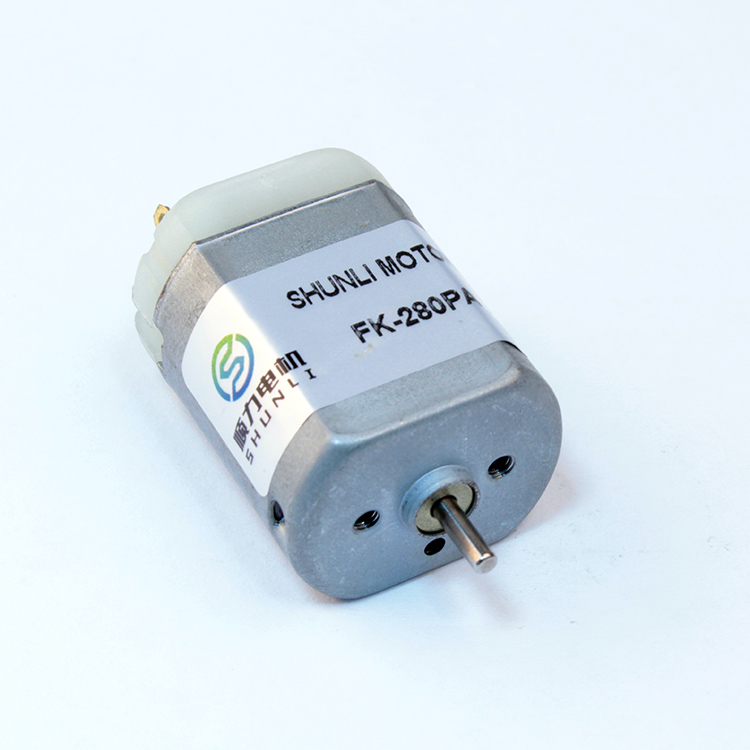

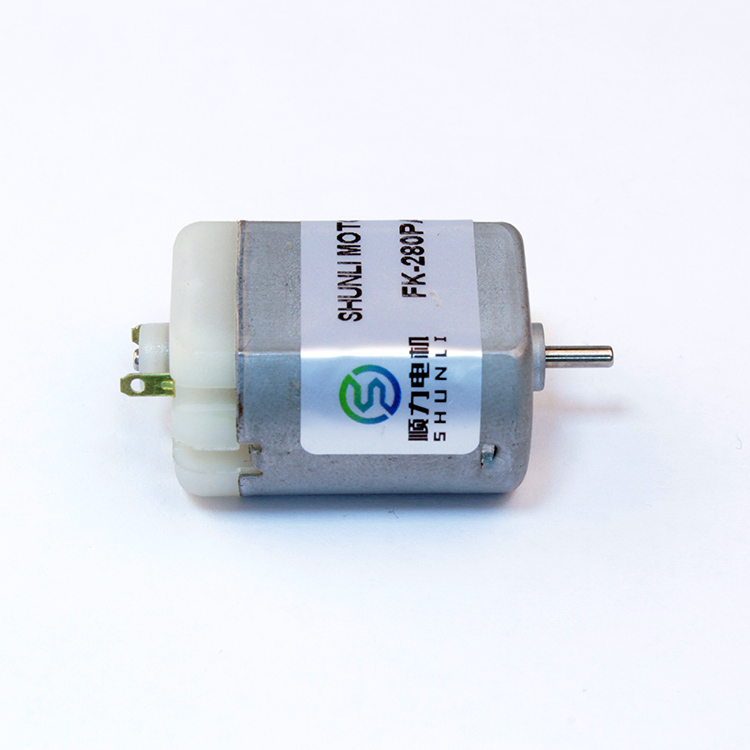

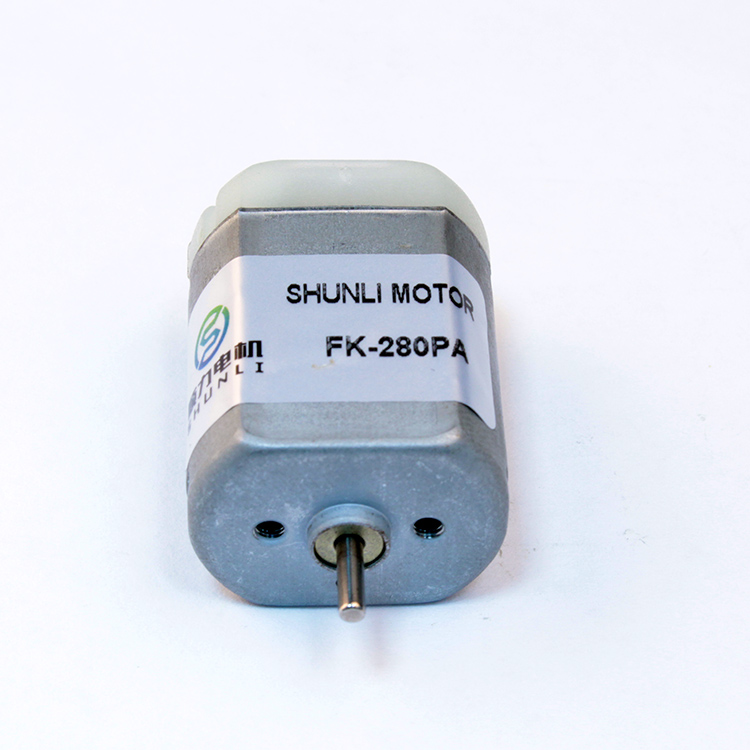

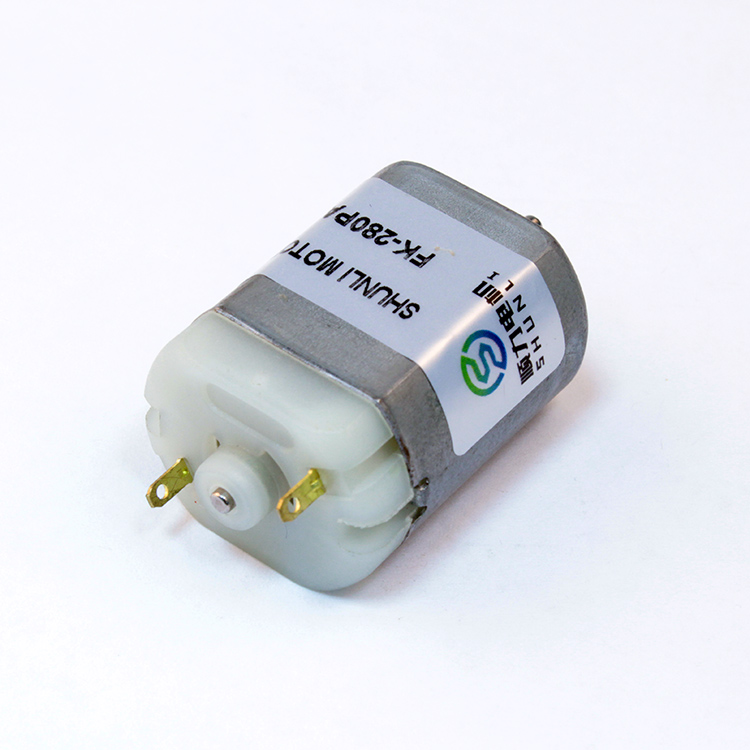

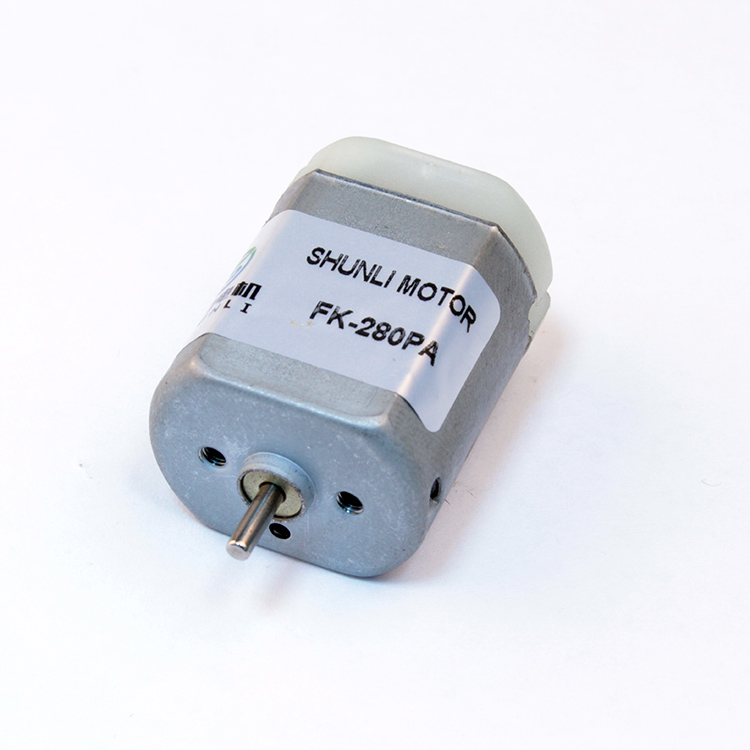

SRC-280 12v Dc Electric Motor Bicycle SRC-280A Micro Dc Motor Shunli Motor Strong or Normal One for Option Permanent Magnet 42g
Product Description
SRC-280 12v DC Electric Motor Bicycle
Promotion
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FK-280SA | 4525 | 1.0~2.0 | 1.2VDC | 8670 | 730 | 6560 | 2240 | 1.74/17.7 | 1.3 | 8430 | 9.61/98 |
| 16245 | 6.0~12.0 | 12VDC | 7300 | 60 | 6027 | 290 | 3.4/34.6 | 2.15 | 1350 | 19.5/198 | |
Click to know more parameters!
Application
Certifications
Why Choose Us
Quality Control
In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is the basis of our development.
Our Service
-
We are gold seller and in possession of high credibility.
-
100% on-time delivery rate confirms your product arrives timely.
-
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
-
Timely reply, your message will be replied within 2 hours.
Recommend Product
Frequently Asked Questions
Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
What are the typical operating voltages for the FK-280SA series motors?
The FK-280SA series offers models designed for operating ranges such as 1.0~2.0V (with 1.2VDC nominal voltage) and 6.0~12.0V (with 12VDC nominal voltage) to meet various application requirements.
