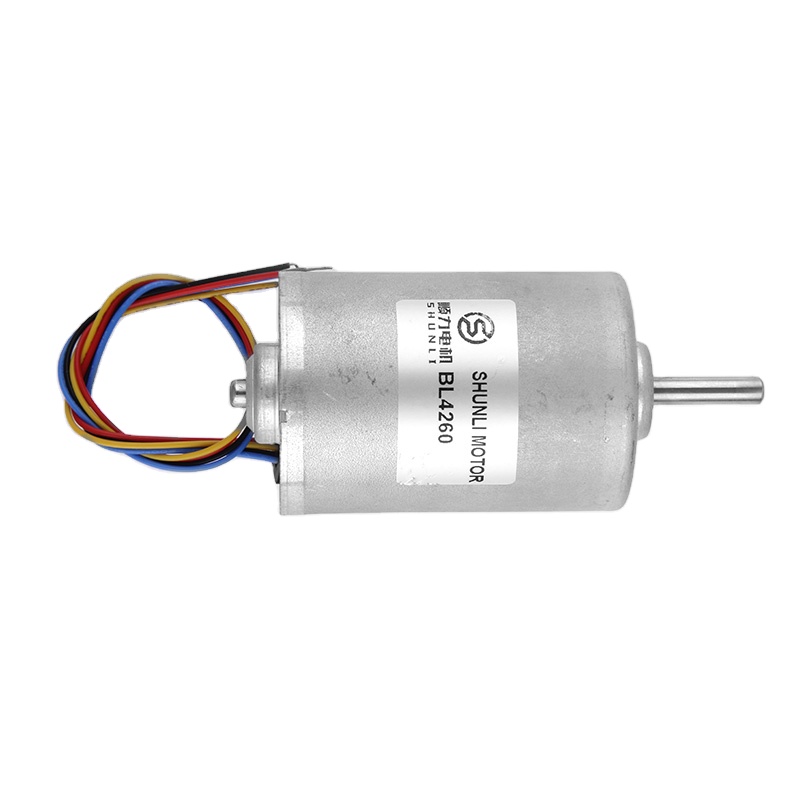

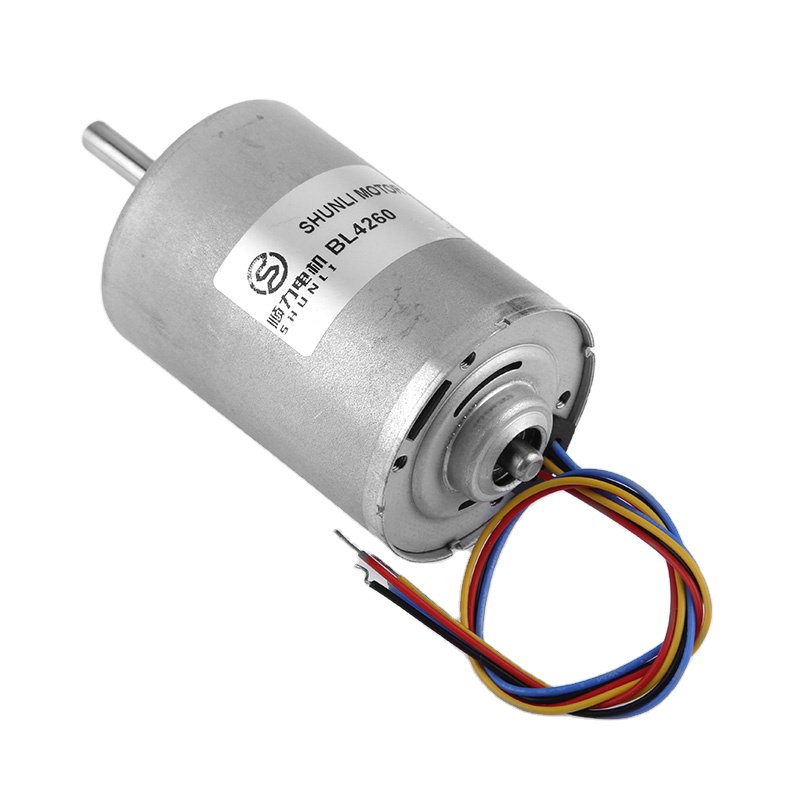

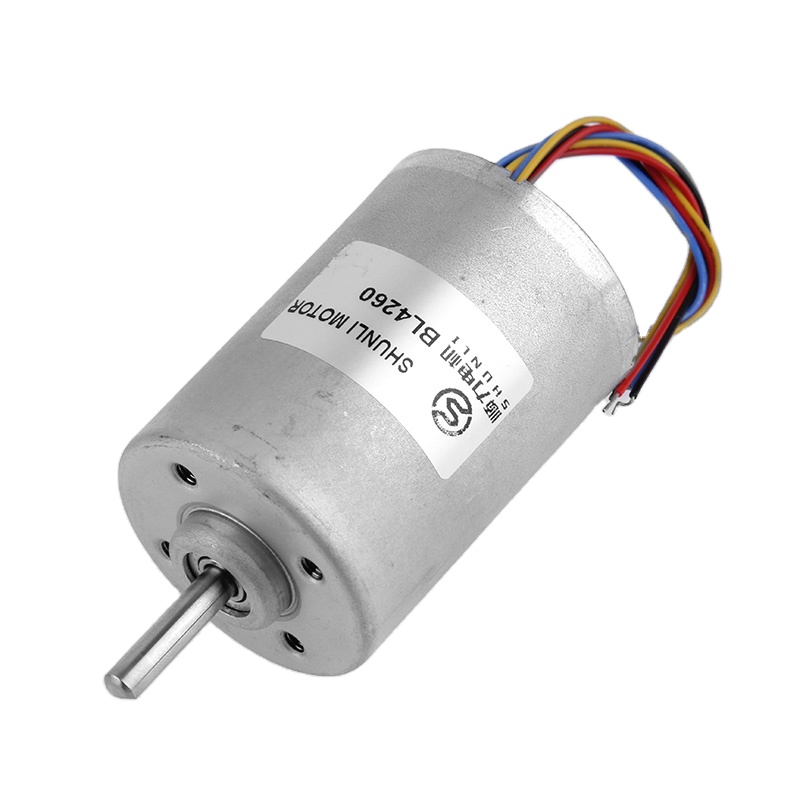

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor
Product Description
Product Description
12v 18v 24v power brushless dc motor 1500 RPM 3000 RPM 4000 RPM for Washing machine/RC plane/DIY Technical tool/fan/Robot/Pump
Product Details

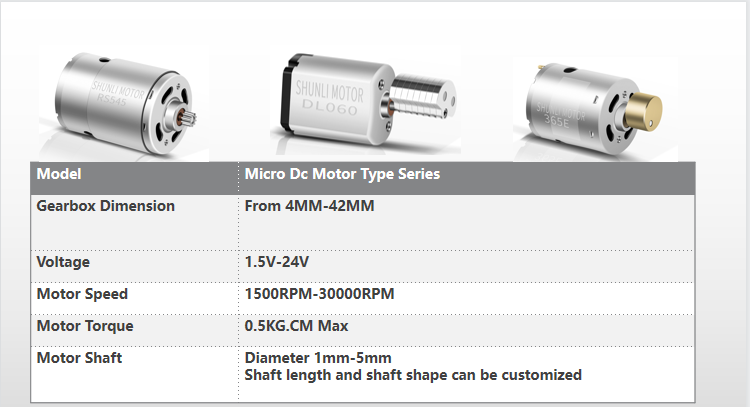

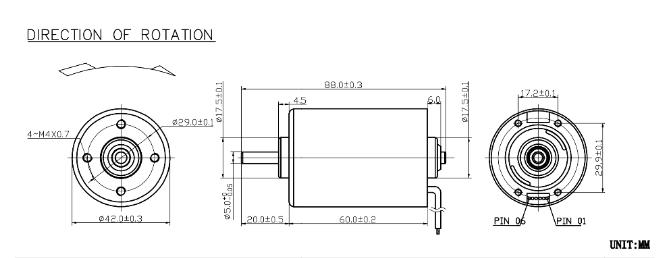

Motor Customized Specification
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |

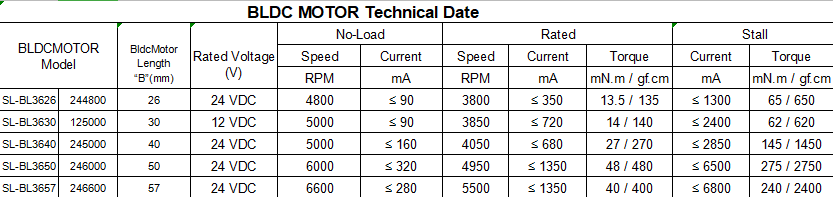

Reference Datasheet
Recommend Product
Frequently Asked Questions
Q1What are the main applications of this brushless DC motor?
This 12V 18V 24V power brushless DC motor is highly versatile and widely used for washing machines, RC planes, DIY technical tools, fans, robotic systems, and water pumps.
Q2What are the standard speed (RPM) configurations available?
The motor supports reference configurations at 1500 RPM, 3000 RPM, and 4000 RPM, catering to different requirements for torque and rotation speed.
Q3How does the 5-pin configuration termination work?
The motor features a 5-pin terminal arrangement: Pin 1 (VCC) for positive power supply, Pin 2 (FG) for speed feedback, Pin 3 (CW/CCW) for direction control, Pin 4 (GND) for ground connection, and Pin 5 (PWM) for speed control.
Q4Can this micro permanent magnet motor support customized specifications?
Yes, customization options are available for voltage configurations, dimensions, speed setups, and pin terminations to fit your specific engineering requirements.
Q5What voltage ratings can this high torque brushless motor support?
The motor is designed to work efficiently across standard DC inputs, including 12V, 18V, and 24V power systems, delivering stable high-torque output.
