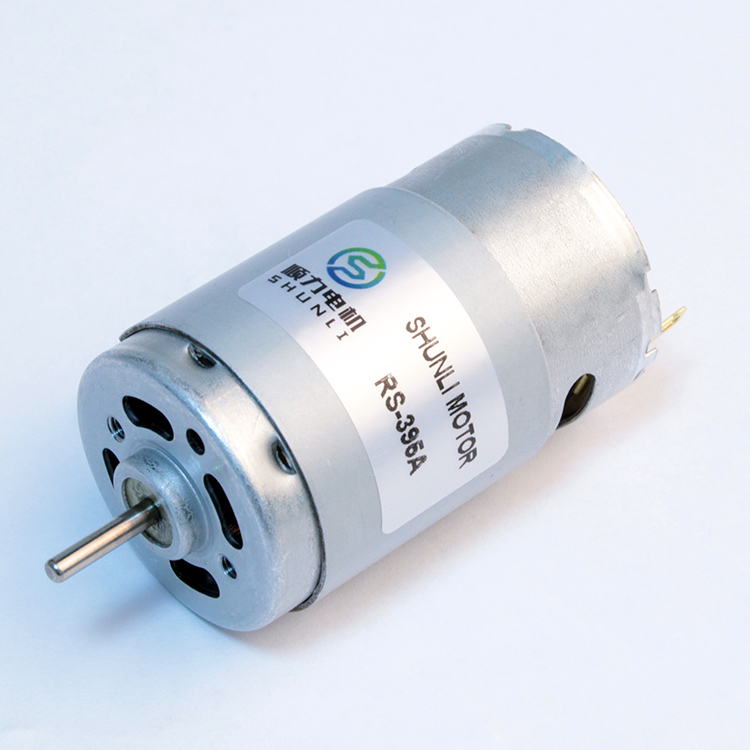

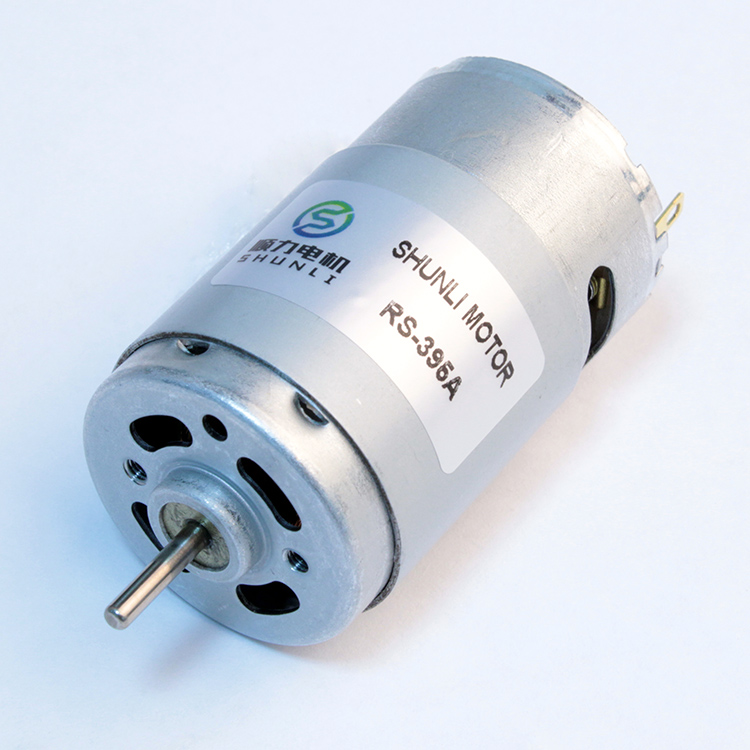

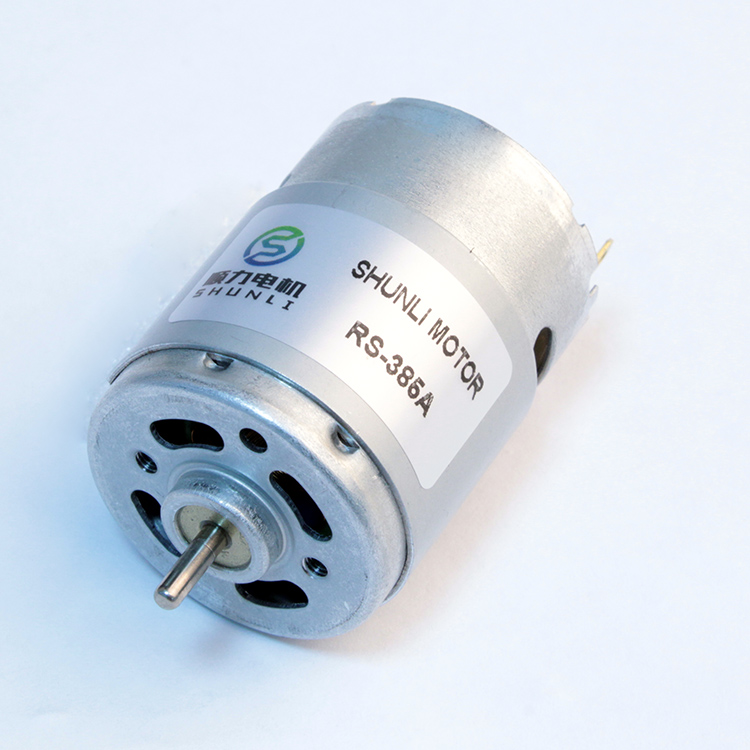

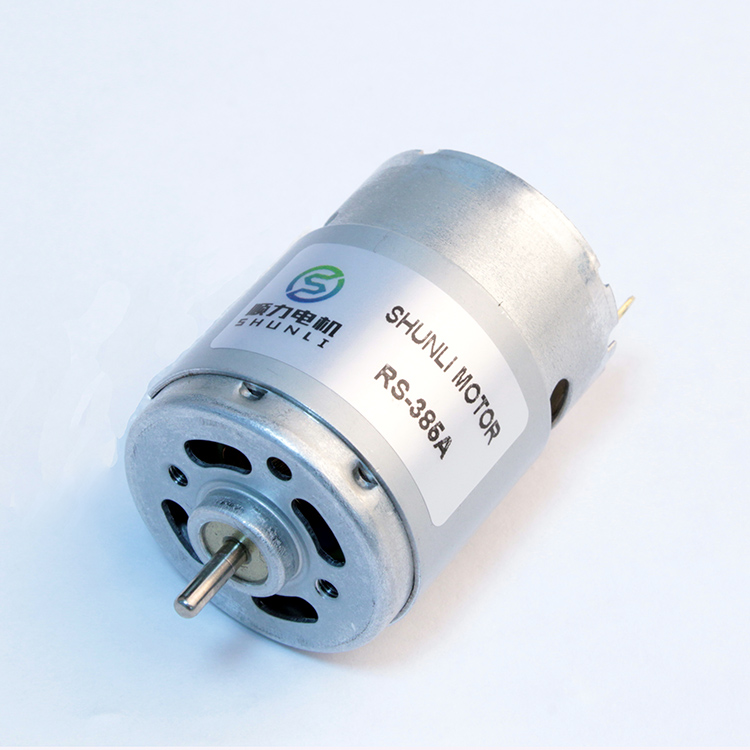

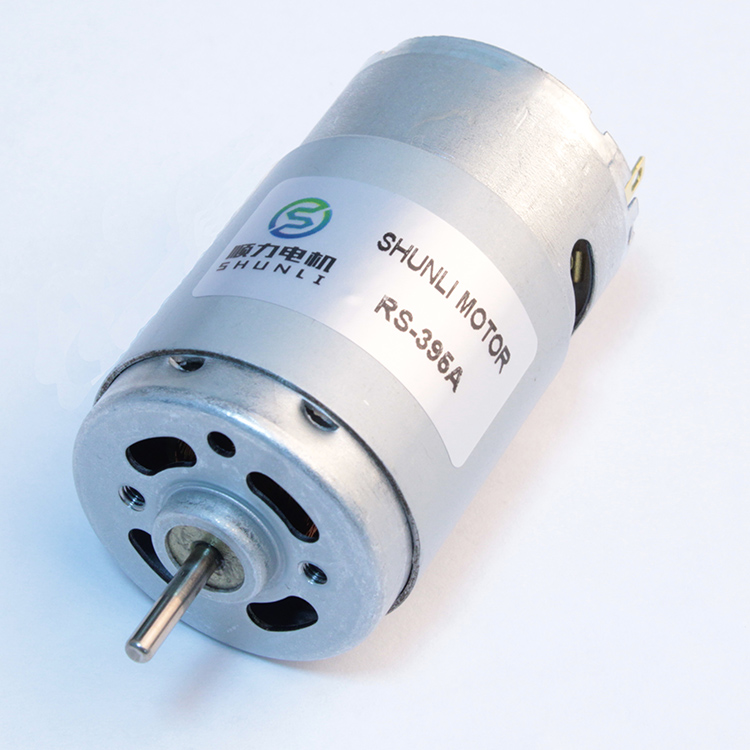

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor
Product Description
Product Details
Motor Customized Specification, Please contact us.
Reference Drawing
RS - 365
RS - 385
RS - 395
The length of shaft can be customized, Please contact us.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m/gf.cm) | Power (W) | Current (A) | Torque (mN.m/gf.cm) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Product Gallery
Frequently Asked Questions (FAQ)
Q1What are the key technical features of the 390 DC motor?
The 390 DC motor is a high-efficiency PMDC motor optimized for applications like machine fans. It features operating voltage ranges from 6.0V up to 24.0V, speeds up to 12,000 RPM depending on the model, and a durable structural profile ideal for stable performance.
Q2Can the motor shaft length be customized?
Yes, we provide flexible customization options for shaft lengths to match your machine fan or mechanical design constraints perfectly. Please specify your request when inquiring.
Q3What are the differences between the RS-390SH and RS-395SH models?
The RS-390SH and RS-395SH differ primarily in operating voltage thresholds, nominal voltage, rated speeds, and torque values. Please refer to our Reference Datasheet table above to match your project's specific parameters.
Q4What range of voltage configurations are available?
Standard configurations operate at nominal voltages of 12VDC and 24VDC. However, custom electrical parameters can be engineered to support voltages ranging from 6.0V up to 24.0V depending on your application needs.
Q5Are these motors suitable for heavy-duty machine fan cooling?
Absolutely. With speeds of up to 6000RPM to 12000RPM and robust PMDC construction, these motors are specifically engineered to provide consistent torque and optimal heat dissipation for machine fans.
Q6How do I request a custom motor specification?
You can easily share your detailed technical requests, including custom voltage ranges, target speed, stall torque, and physical dimensions, to configure a custom motor solution tailored to your exact application.
