Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

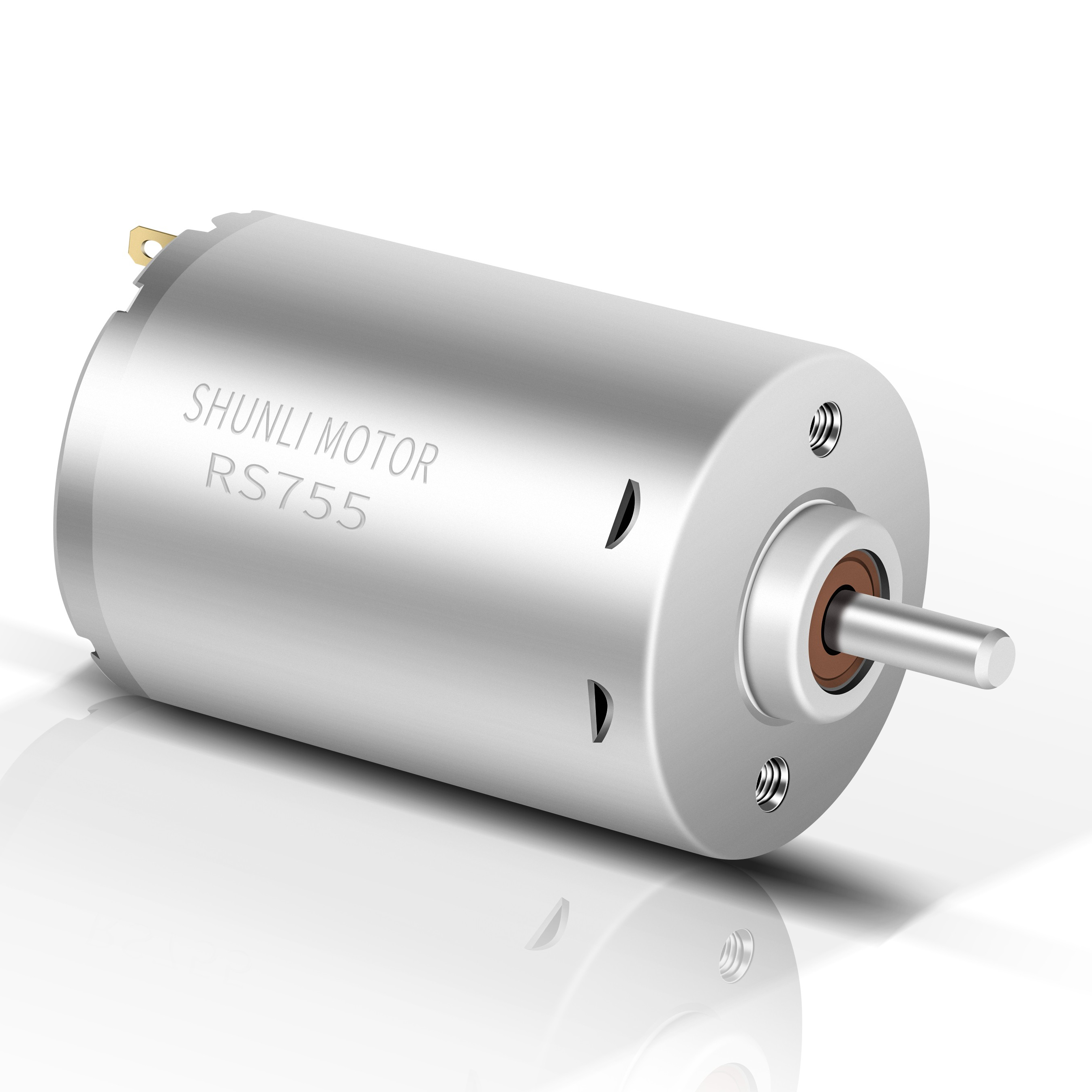

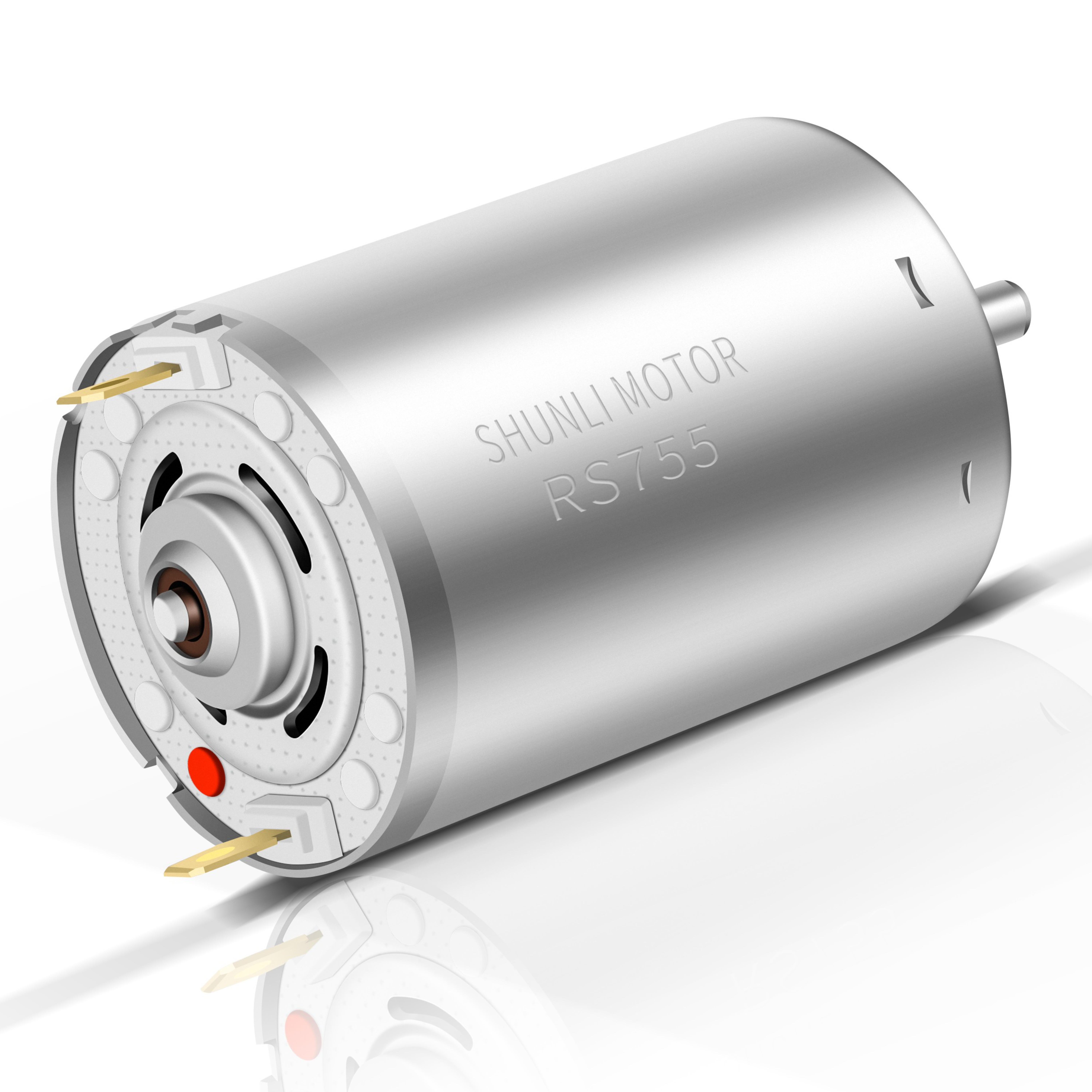

Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

Product Details

Motor Customized Specification, Please contact us for detail configurations.

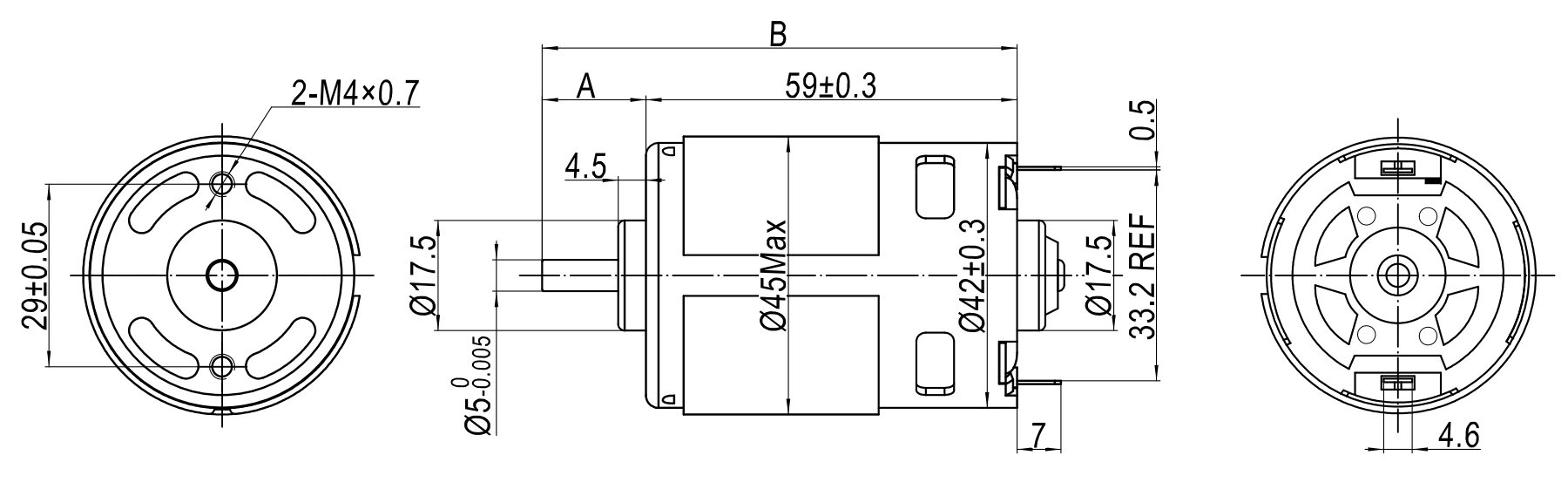

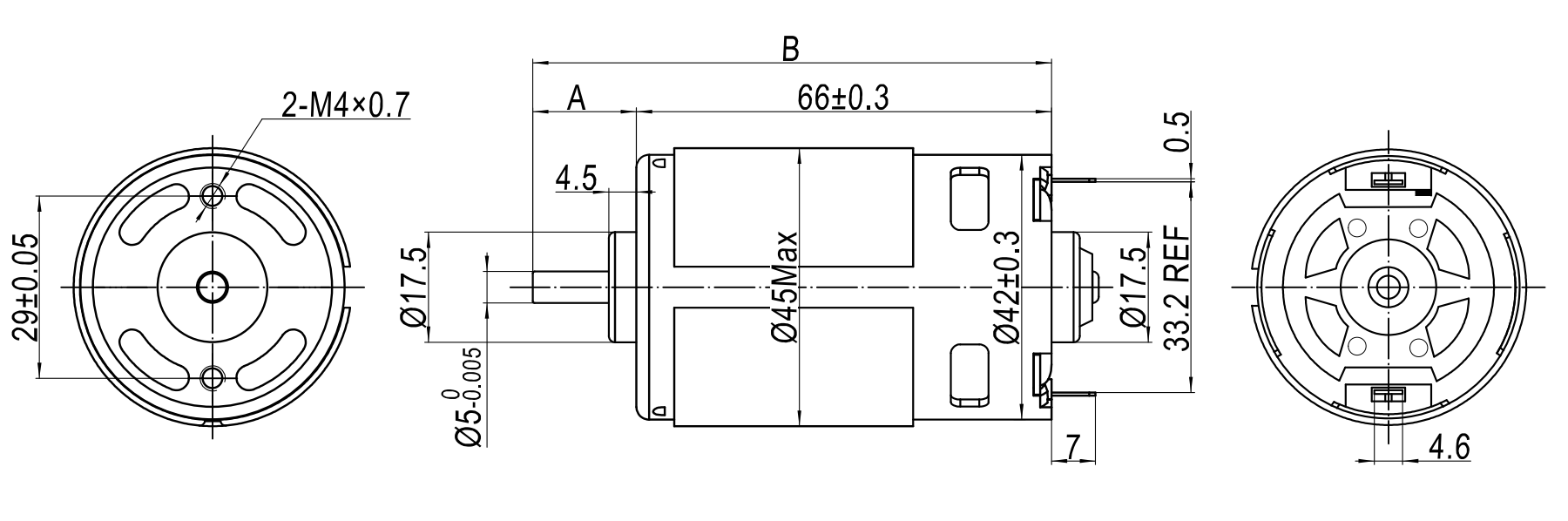

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized based on your requirements.

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

Application

Certifications

Frequently Asked Questions

Q Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of design and manufacturing experience.

Q What is the payment term for new customers?

We can draw up online assurance orders for new customers, which can be paid online via Mastercard, Visa, etc. Customers can also pay via PayPal, TT, and other methods.

Q If I cannot find a suitable motor on the website, can you customize it?

Yes, we can customize a suitable motor based on our customers' specific performance and structural requirements.

Q Do you have corresponding certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can also apply for them accordingly.

Q How do you handle Quality Control?

We have professional inspection staff on every production line process. After finishing assembly, we utilize comprehensive quality testing equipment to test the motors, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
