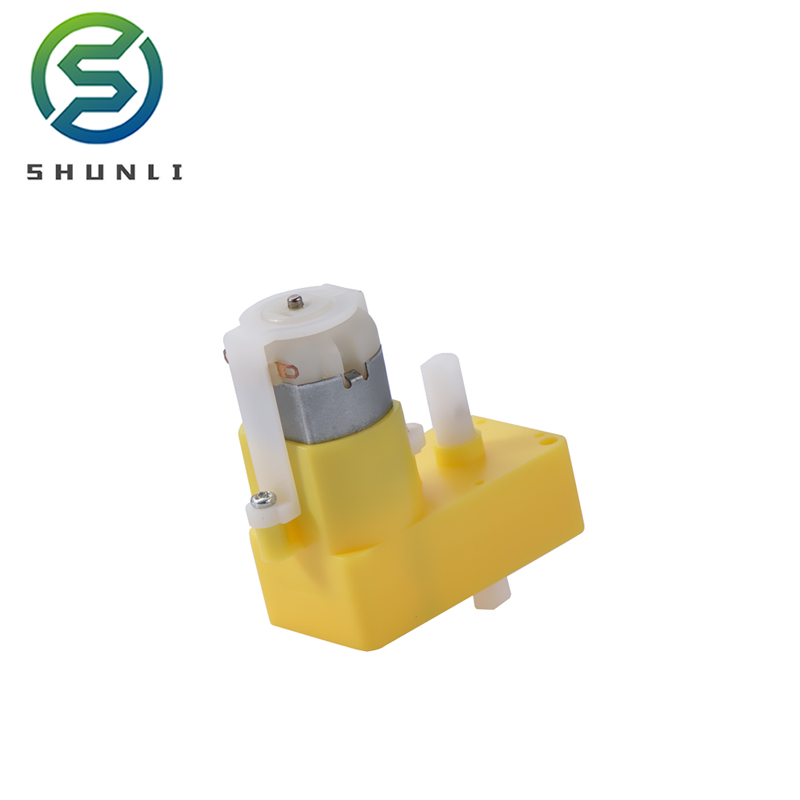

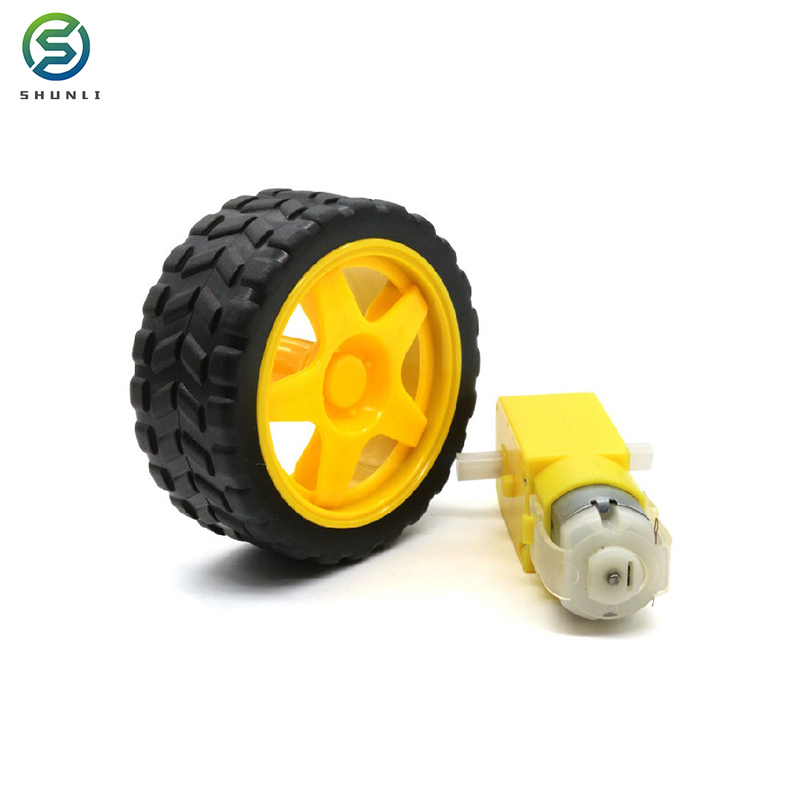

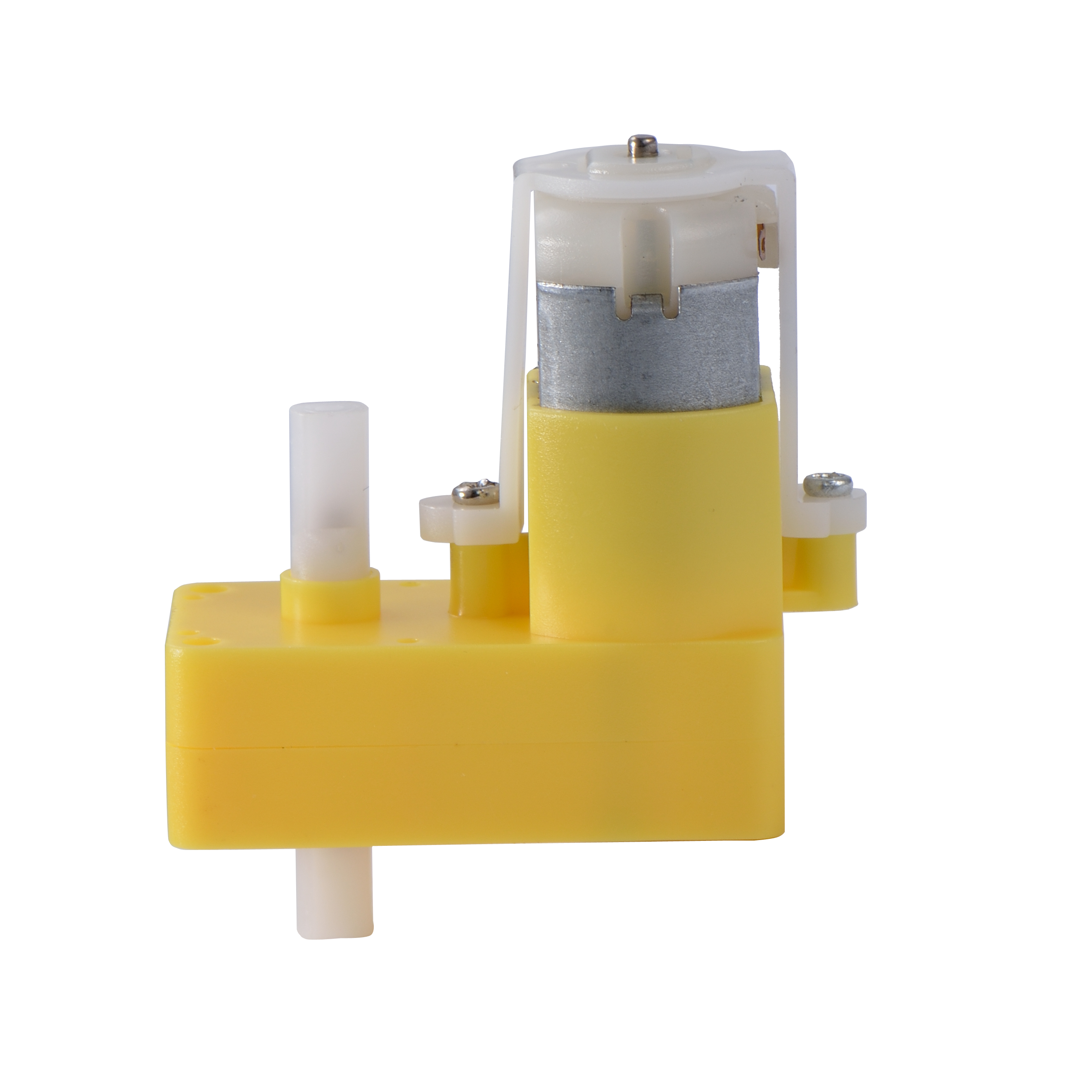

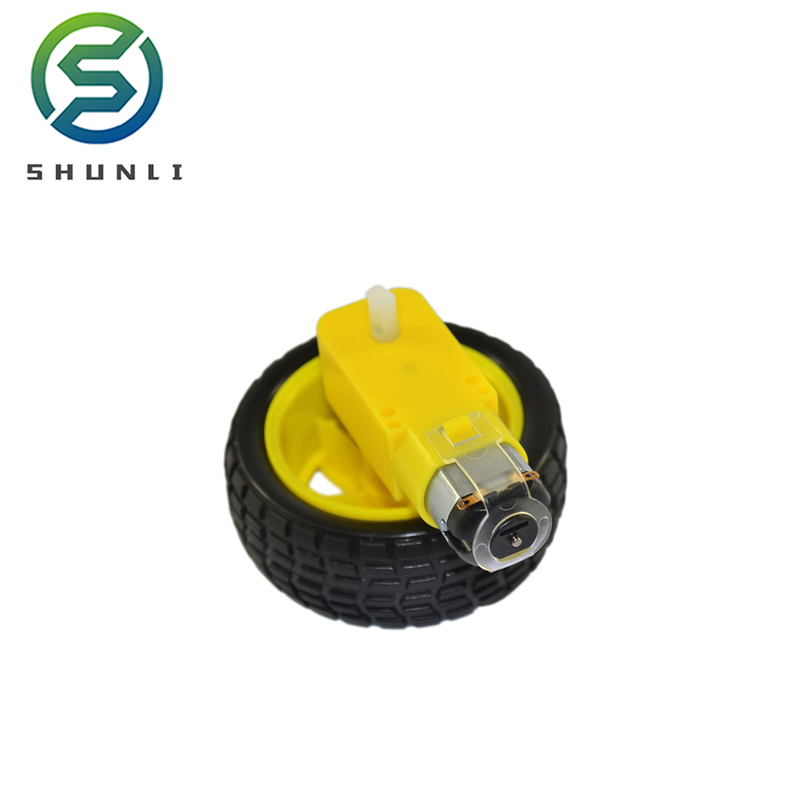

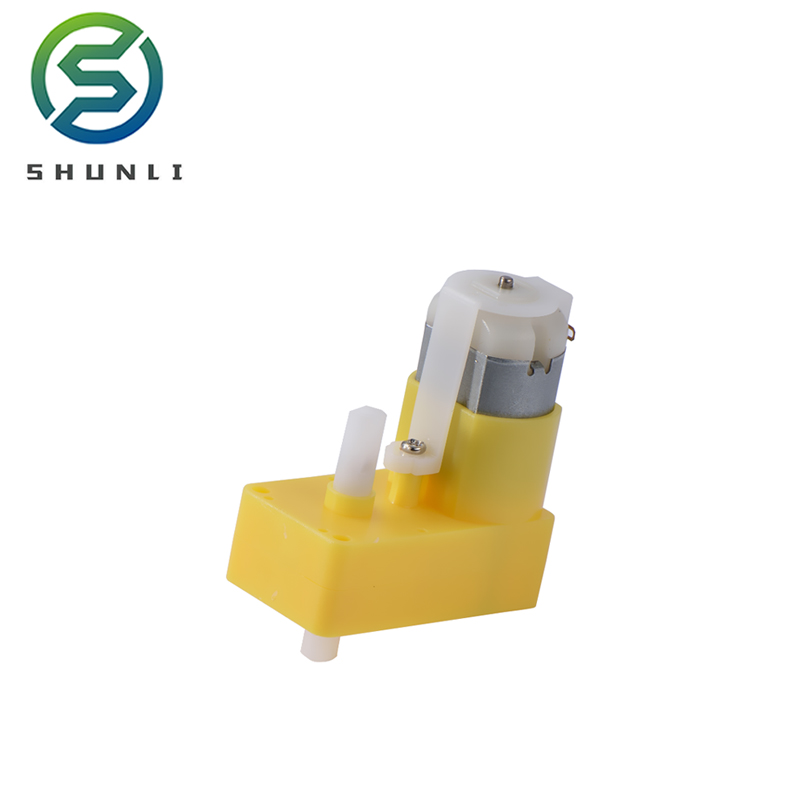

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Product Description
Yellow DC Gear Motor with Plastic Wheels of Toy Car
Promotion
Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
Frequently Asked Questions (FAQ)
What is the working voltage range of these yellow DC gear motors?
The working voltage range for both the SGP01S-A130-14150-120 and SGP01S-A130-18100-220 models is 3V to 12.0V, providing versatile power options for different projects.
What are the rated speed and current parameters under load?
For the SGP01S-A130-14150-120 model at rated voltage, the load speed is 87 rpm with a load current of 0.5 A. For the SGP01S-A130-18100-220 model, the load speed is 40 rpm with a load current of 0.3 A.
How much torque do these motors provide when stalled?
The SGP01S-A130-14150-120 model offers a stall torque of 0.265 N.m (2.7 Kg.m), while the SGP01S-A130-18100-220 model delivers a higher stall torque of 0.393 N.m (4.003 Kg.m).
What is the no-load current consumption?
Both motor models feature a very low no-load current consumption of 0.2 A, helping to conserve energy in battery-powered operations.
Are these motors suitable for DIY toy cars and smart robots?
Yes, these yellow DC gear motors are equipped with matched plastic wheels, making them ideal drive units for toy cars, smart robot chassis, and interactive hobby electronics.
