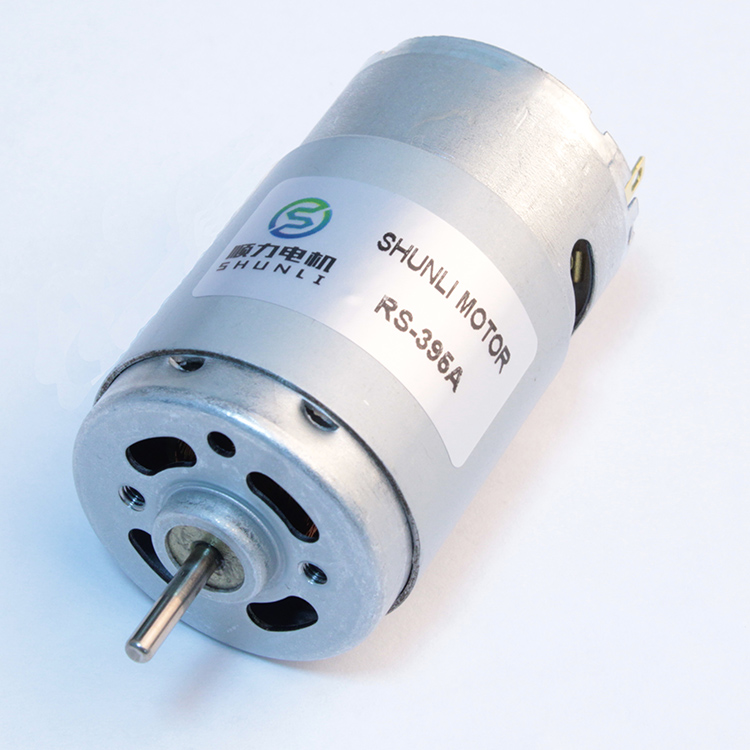

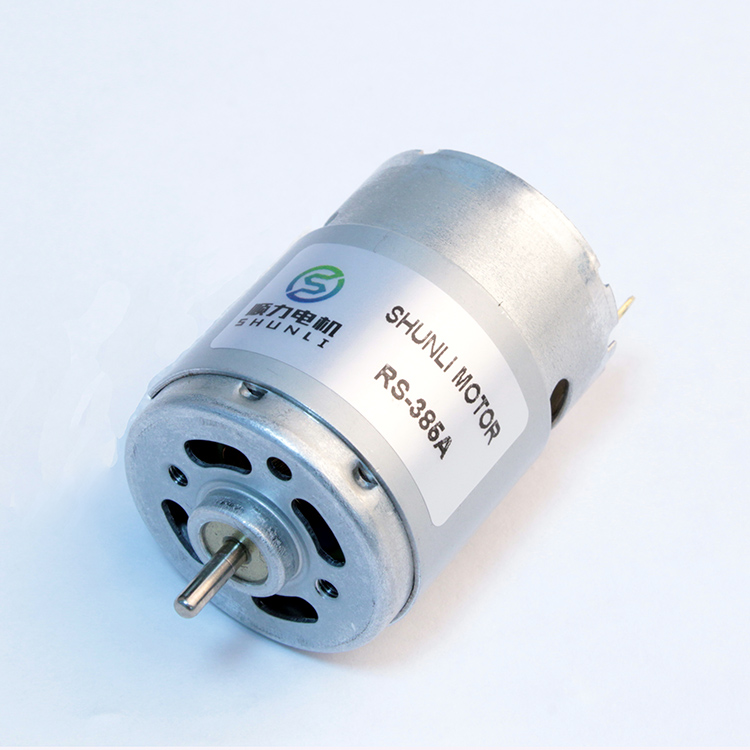

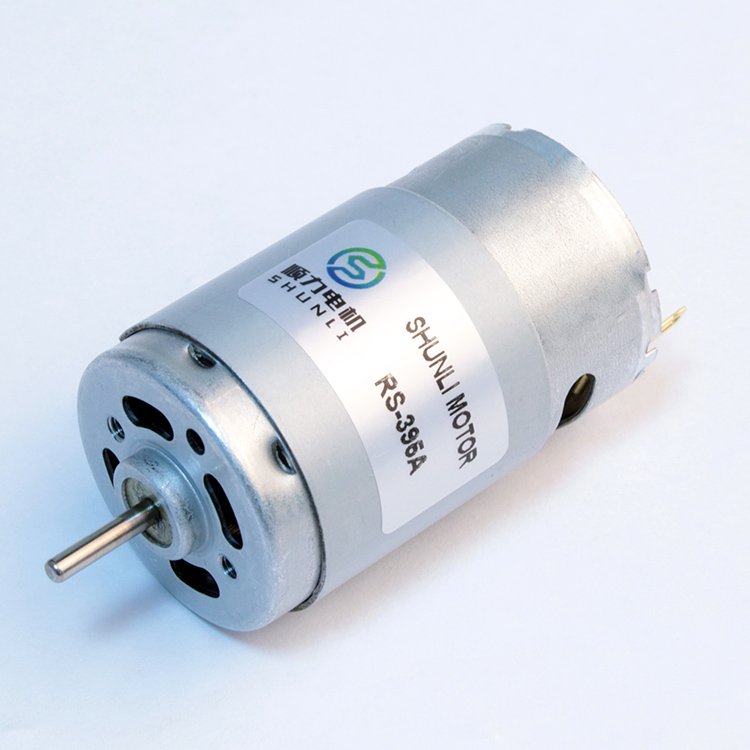

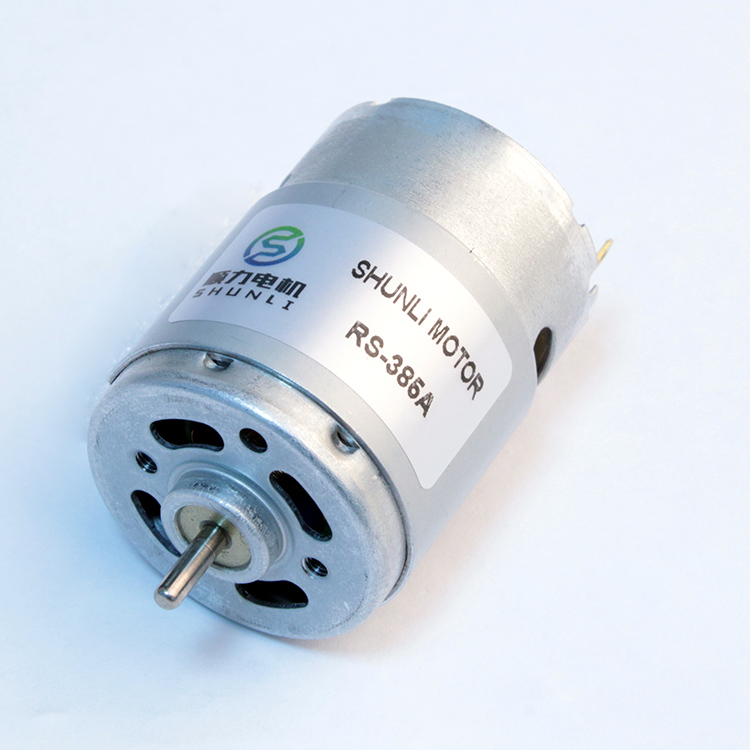

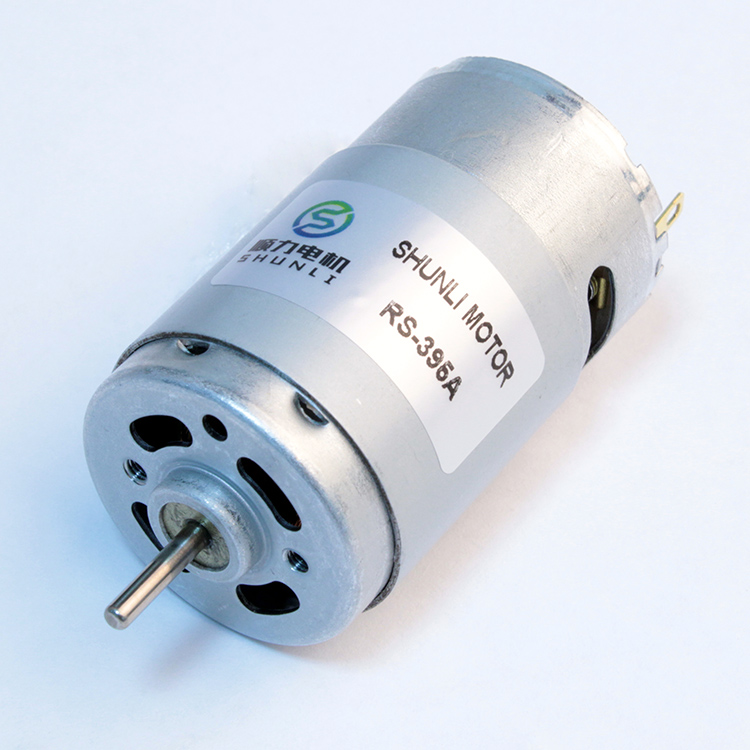

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless
Product Description
Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
Product Details
💡
Motor Customized Specification, Please contact us for details.
Reference Drawing
------ RS - 365
------ RS - 385
------ RS - 395
⚙️
The length of shaft can be customized upon request.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Recommend Product
Frequently Asked Questions (FAQ)
Q:What are the main applications for the 390PH 12V DC motor?
The 390PH 12V DC motor is specifically designed for high-speed, compact applications such as professional hair dryers, micro vacuum cleaners, personal care appliances, and other hand-held smart devices.
Q:Can the shaft length of the motor be customized?
Yes, the motor shaft length can be fully customized according to your mechanical design and installation requirements. Please contact us with your specifications.
Q:What is the operating voltage range for these PMDC motors?
The operating voltage range varies by model. For instance, the RS-390SH models generally operate within 6.0V to 12.0V, while the RS-395SH models can work up to 24.0V DC.
Q:Are custom technical specifications available for the motors?
Yes, we support customization for motor specifications, including operating voltage, no-load speed, rated torque, and output power, to ensure a perfect fit for your application.
Q:What configuration options are available for these motors?
We offer professional configurations including brush (PMDC) and brushless options to optimize for cost, performance, and operational lifespan according to your requirements.
