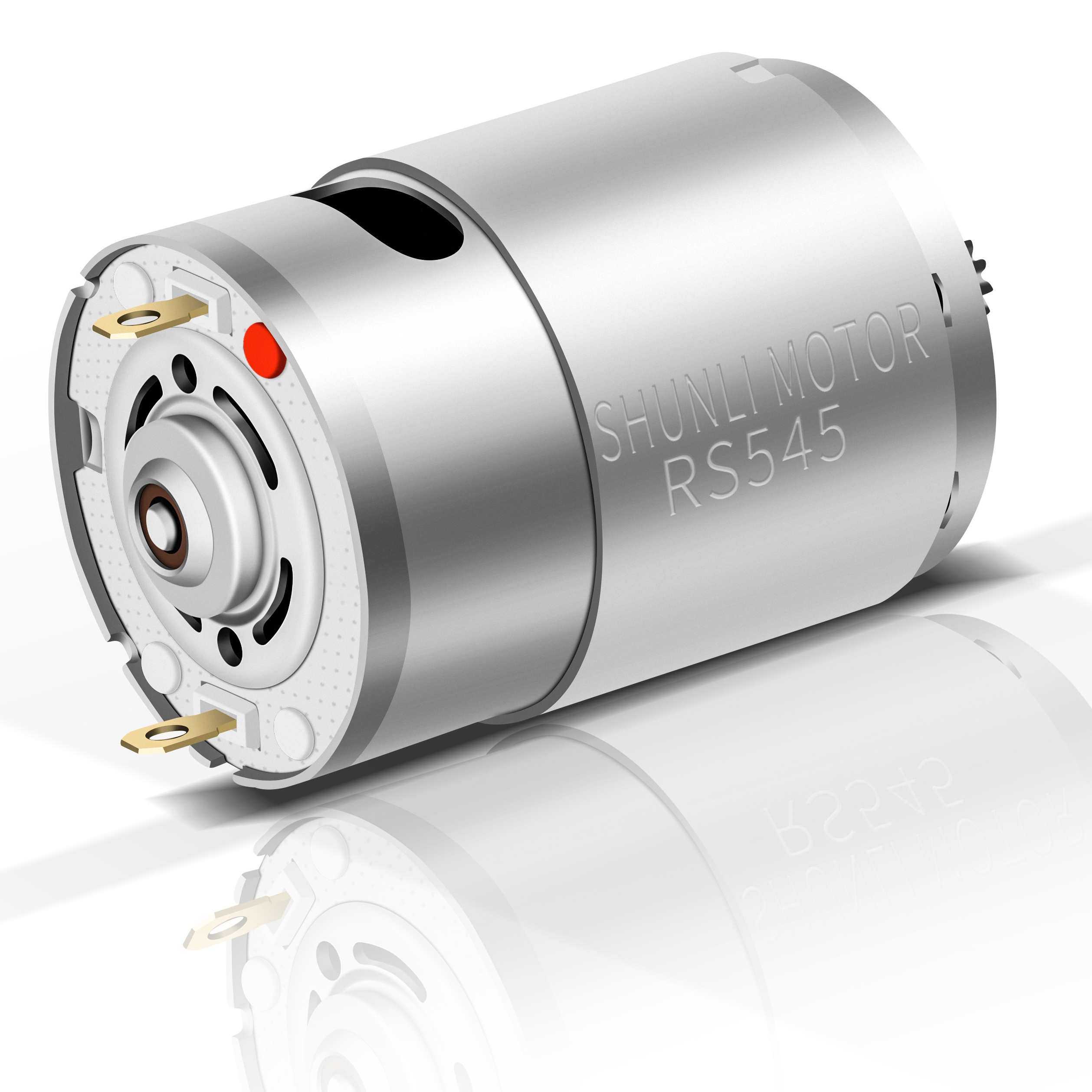

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Product Description
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
Product Details
| PMDC MOTOR Technical Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | ||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | ||
| RS-550H | 23128R | 6.0 ~ 24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 / 262 | 10.6 |
| 6034 | 6.0 ~ 12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 / 261.3 | 40.36 | |
| RS-555H | 3540 | 6.0 ~ 12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 / 223.4 | 15.35 |
| 23100 | 6.0 ~ 24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 / 195.8 | 12.09 | |

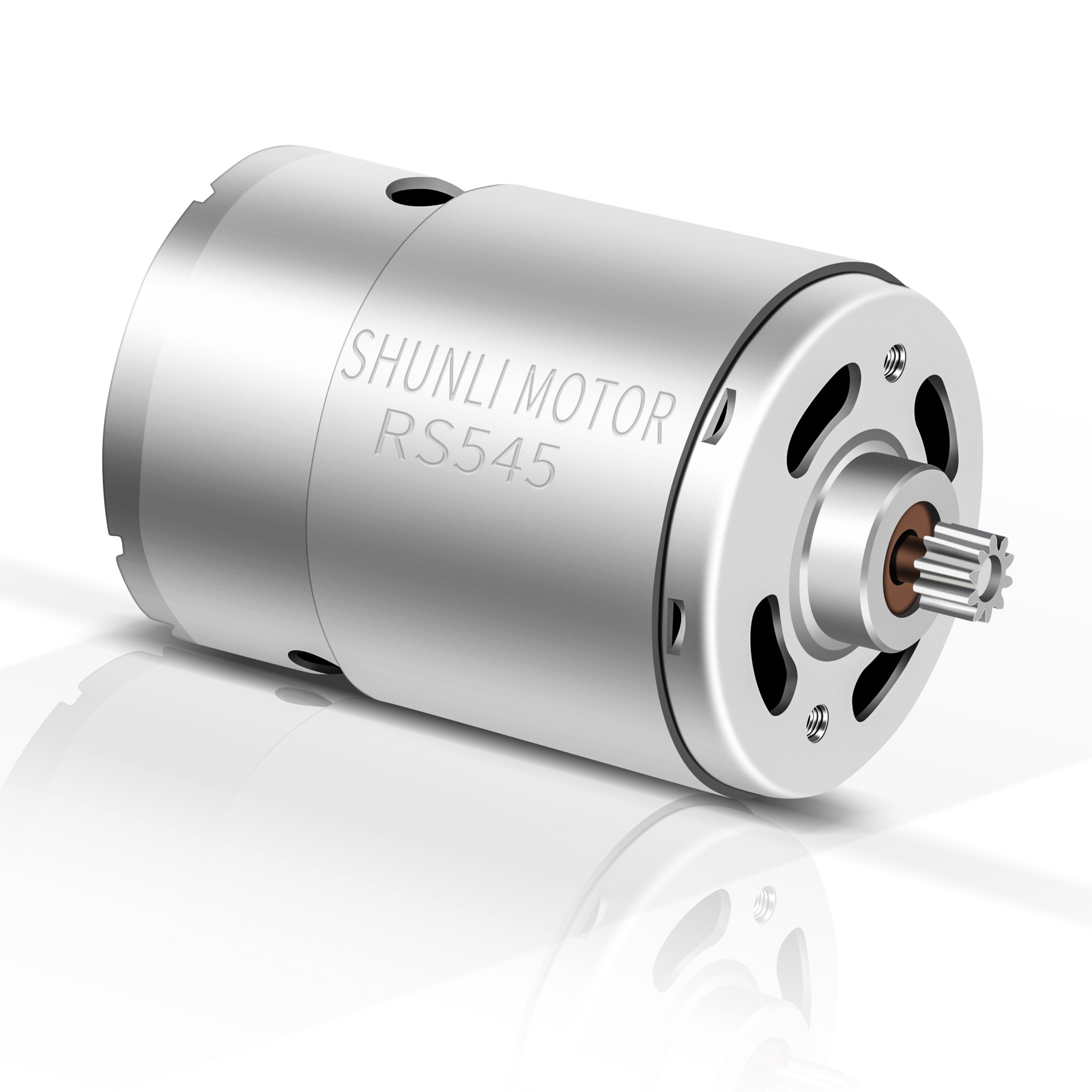

RS - 545 A
Frequently Asked Questions
Q1: What voltage ranges do the RS-550, RS-545, and RS-555 DC motors support?
A1: These PMDC motors are highly versatile and typically support wide operating voltage ranges including 6V, 12V, 18V, and up to 24V DC depending on the model configuration.
Q2: What is the maximum speed (RPM) of the RS series DC motors?
A2: Depending on the specific winding and voltage application, these high RPM motors can reach no-load speeds of up to 15,000 RPM or 30,000 RPM.
Q3: What are the main applications for these PMDC motors?
A3: They are widely used in power tools (such as cordless drills and drivers), automotive electronics, household smart appliances, gardening tools, and custom DIY automation applications.
Q4: Are the motor parameters like speed, voltage, and shaft customizable?
A4: Yes, technical specifications including operational range voltage, speed, current draw, and torque ratings can be adjusted to meet specific industrial and product requirements.
Q5: How do I select the right motor model between RS-550H and RS-555H?
A5: Model selection should be based on your load speed and torque specifications. For example, the RS-550H (6034) is optimized for higher power outputs (40.36W) at 12V, whereas the RS-555H models provide different combinations of speed and torque efficiency.
Q6: Are these motors compatible with battery-operated designs?
A6: Yes, their low nominal voltage operation (such as 12VDC or 24VDC) makes them highly suitable for battery pack integrations, portable tools, and mobile robotics.
